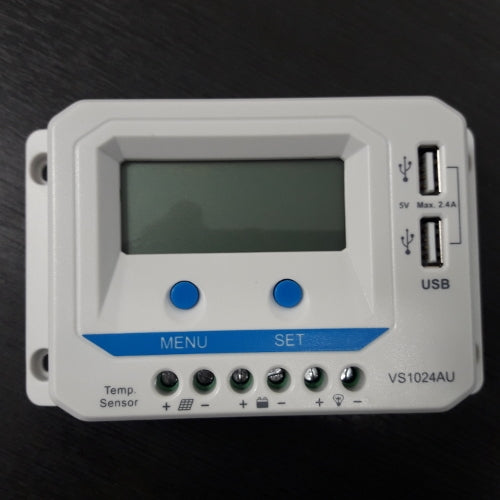

The VIEW STAR AU Solar PWM type controller is a 10 Amp solar controller broadly used for motor-home and Caravan solar systems. This controller has a built-in display, which tells you what the voltages are at the panel and at the battery. It also indicates amps being used and being produced.
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
- 3 stage PWM type charging Bulk, boost Float
- LCD Display
- 2 USB ports
- Connection for Remote Temperature sensor for monitoring battery temp
- Indicators for setting a timer or battery type
- Setting button for load work mode status selection

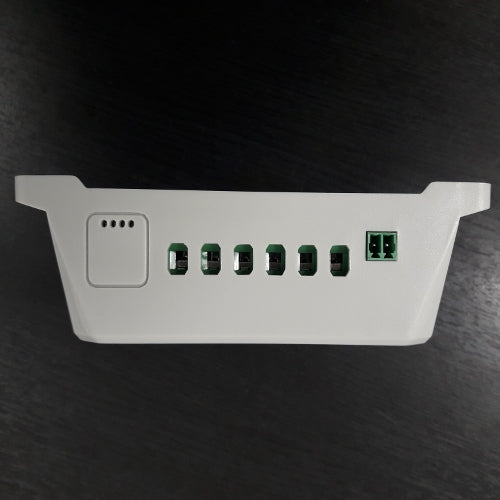

- Solar Module terminal connection blocks
- Battery terminal connection blocks
- Load terminal connection blocks
Technical Information
- System voltage 12/24 VDC Auto
- Rated charge current 10A
- Rated discharge current 10A
- Max PV input voltage 50v
- Max PV Input power for a: 12 volt system 120 watt / 24 volt system 240 watt
- Dimension: 142mm x 41.5mm x 85mm (wxdxh)
Minimum Requirements
- Recommended cable diameter from the solar panel should be no more than 4mm2
- The solar controller should always be fitted in a dust-free, dry environment.
- Always run loads from the load terminals on the right of the solar controller, unless the draw is greater than 10 Amp. That way you can always monitor how much energy you are generating and using
- Always use external inline fuse holders
