This is a self-containment kit for those who want to obtain self-containment themselves. Every caravan is different, but this should contain most of what is required to alter the plumbing into a portable waste tank. This should only be attempted by someone with reasonable DIY skills.
The UK and European caravans manufacturers use a 25 mm grey or black tube for all the waste plumbing. This is a push-fit system and therefore requires no glue for assembly. Mostly it is possible to redirect all the plumbing to one point without buying any extra tube.
You will need a wastewater tank to connect to this kit, and the wastewater tank needs altering, for that you will need a Roll tank hardware kit
You will also need a hose kit from the caravan to the tanks
For more information about self-containment on your vehicle, please feel free to contact us on 09 427 8247 or firstname.lastname@example.org.

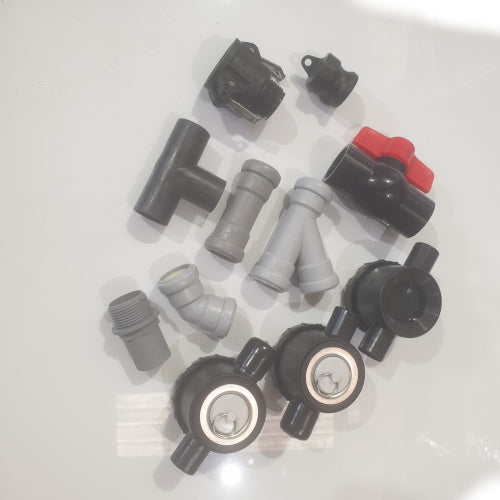

- 1 Ball valve fitted with a Camlock male outlet and a 25mm BSP waste connection
- 3 x waste traps
- 1 x 90 elbow
- 1 x 45 elbow
- 1 x straight connector
- 1 x threaded 25 mm BSP waste connection
- 1 x T
- 1 x Y
- 1 x Camlock cap
