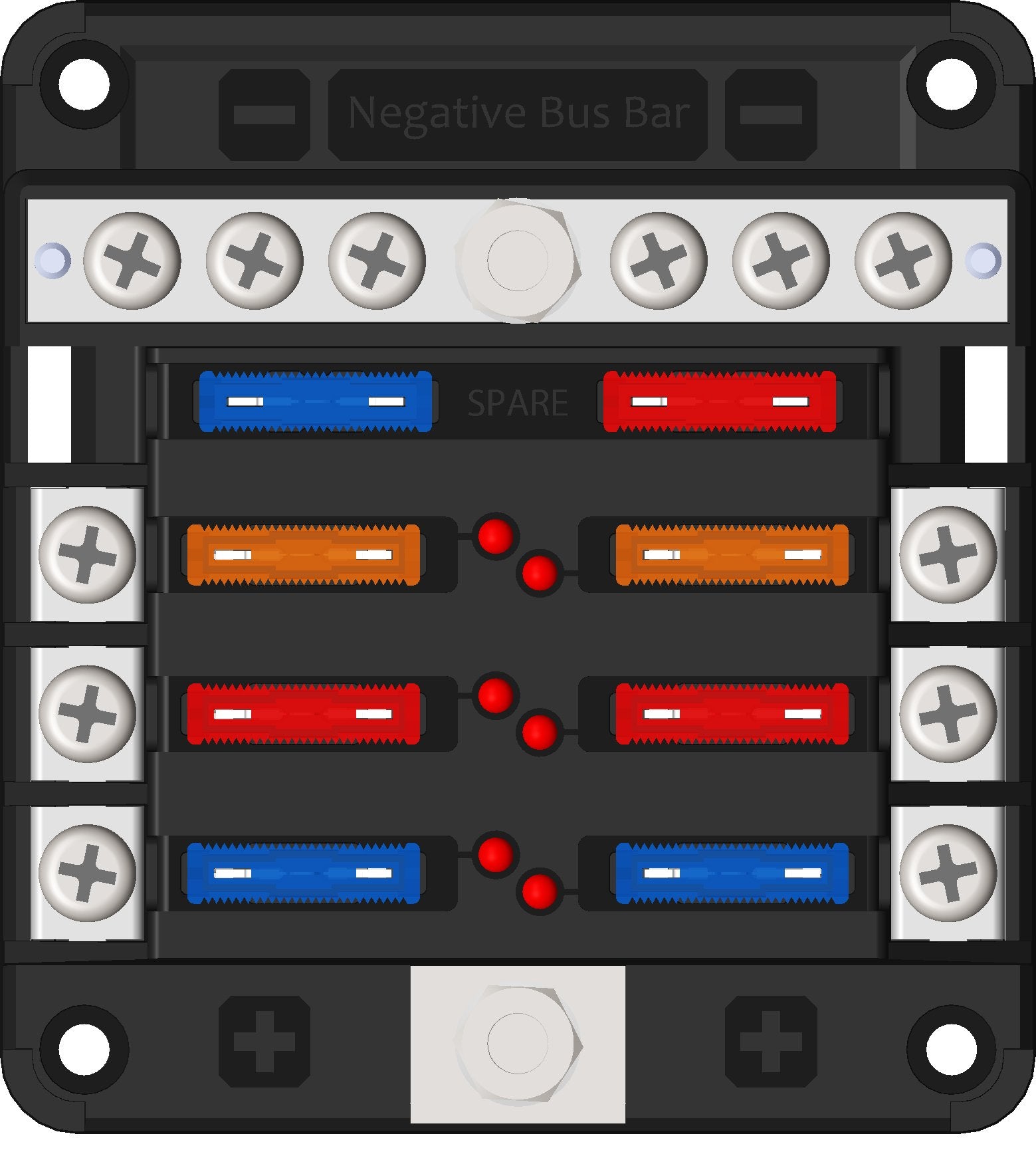

6-way Standard ATS Blade fuse block with three removable transparent covers, One for the positive terminals, one for the negative terminals, and a center one for replacing the fuses. Each fuse has a fault indicating LED to instantly show which circuit has poped. It has 2 spare fuse holders and copious printed circuit identification labels. The product consisted of a sturdy ABS plastic construction that can be separated or split into sections to make wiring in tight spaces easier
WARNING: Never connect anything to the battery without using a fuse.
WARNING: Never connect anything to the battery without using a fuse.
Features
- Suitable for standard ATS blade fuses
- See-through dust cover
- With a negative bus bar included
- Fault finding LED indicators
Technical Information
- Rated to 30 amp per circuit, at 12 volt
- 100 amp max, per block
- Max voltage 32V DC
- Dimensions: 110 mm x 85 mm x 41 mm (HxWxD)
