Smaller Solar 175l Fridge kit for Tiny Home or off grid shed
Central Power Hub, Battery and Fridge for your Tiny Home Cabin, or Off-Grid Setup! Say goodbye to messy wiring, complicated installs, and scattered components. The HiTech Power Distribution Panel brings you everything you need in one pre-wired, pre-assembled display, making power management easier, faster, and smarter.
This is the ultimate smart way to easily wire up a tiny home or self-build project hassle-free.
The package includes a large, well-insulated DC compressor fridge to make your project a home. It has a central controller that manages the entire building's power system. But best of all, you don't have to wire up any switches because the lighting and appliance system is wireless.

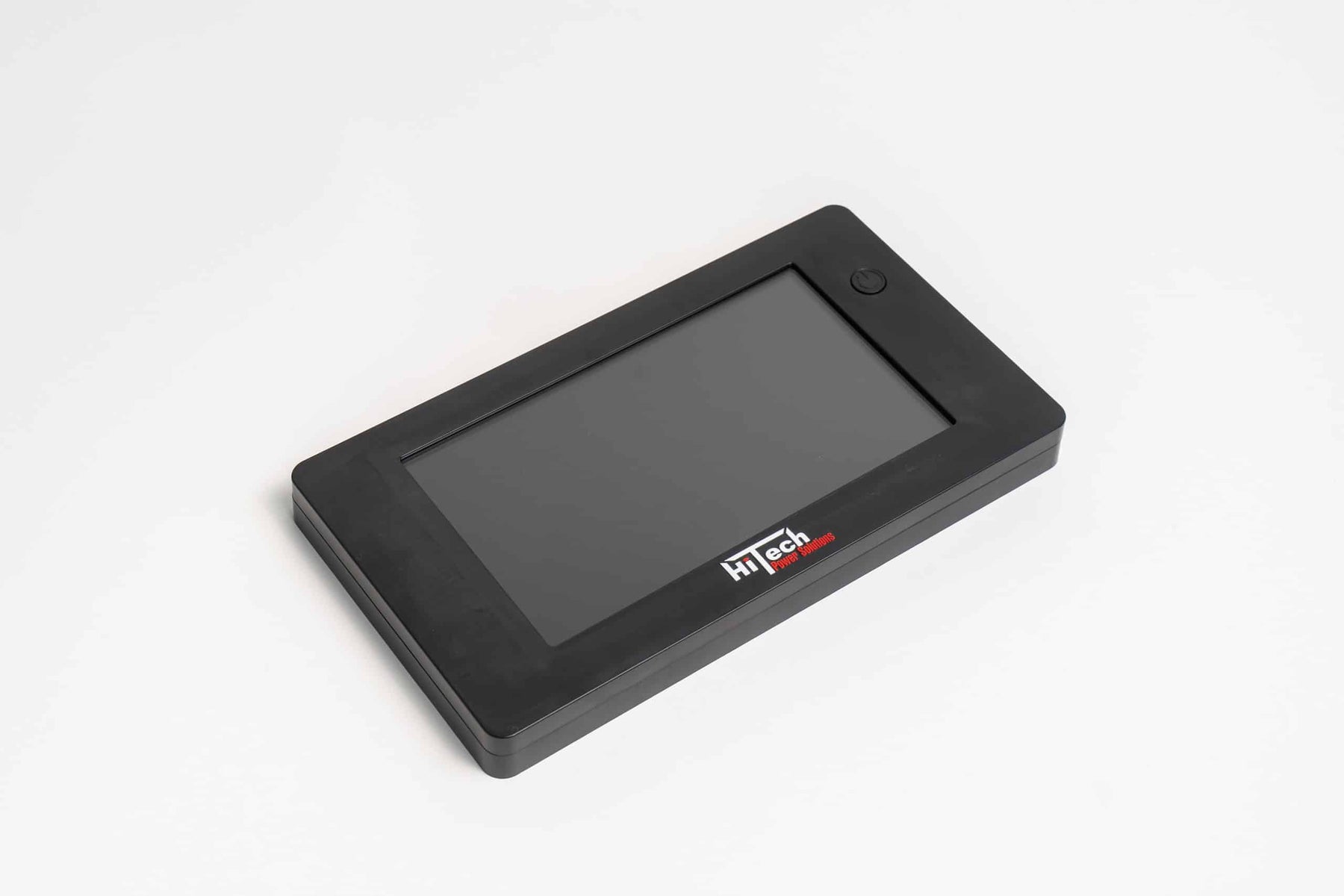

Just run DC supply cables from the central control to the accessories and lights; no need for fuse boards or switch cables. Then you can control everything from your phone app or from a wall-mounted central control panel. Additional individual remote wireless switches can be installed, where required.
Please contact us if you have any questions. Tel: 09 4278247 Email: info@vantagerv.nz
What’s inside it?
- One 40A MPPT-type solar controller, which charges your batteries on a daily basis via your solar system
- The central control unit is where you connect all your DC appliances and lights. You can then control everything through your phone app or wireless monitor. It provides real-time insights into charge status, voltage, load, and more.
- One shunt that monitors the battery and communicates with the main control unit
- You can even add tank monitors at an extra cost
- Also supplied is a very efficient 175-litre compressor fridge
- One 100amp/hr Lithium battery
- Two 380-watt solar panels
This is a prebuilt kit, no guesswork, just run the input and output cables to the central control system and connect, edit all the circuit names, for example, fridge, awning lights, boiler, etc, on the central control board, and then you can switch those appliances, or control everything from the panel or from your phone app. This saves hours of time running cables from switches to all appliances and lights, and it lets you control appliances remotely.
This is an entire package and includes a large fridge, solar panels, battery, central control unit and monitor with inverter, AC charger, solar controller, control panel everything you need to complete your DIY setup
Contact us if you have special requirements and want more from your DIY system. We can advise you to customise the system to suit your needs.
Read more about Solar Fridges
Please contact us if you have any questions. Tel: 09 4278247 Email: info@vantagerv.nz

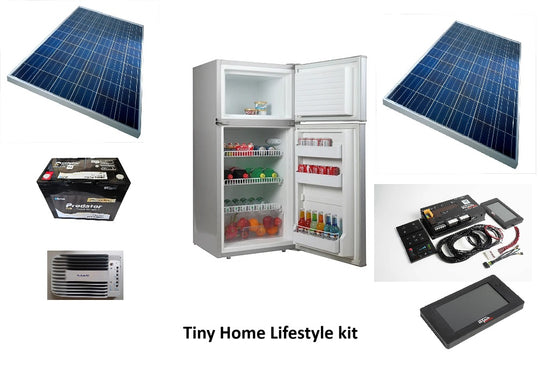

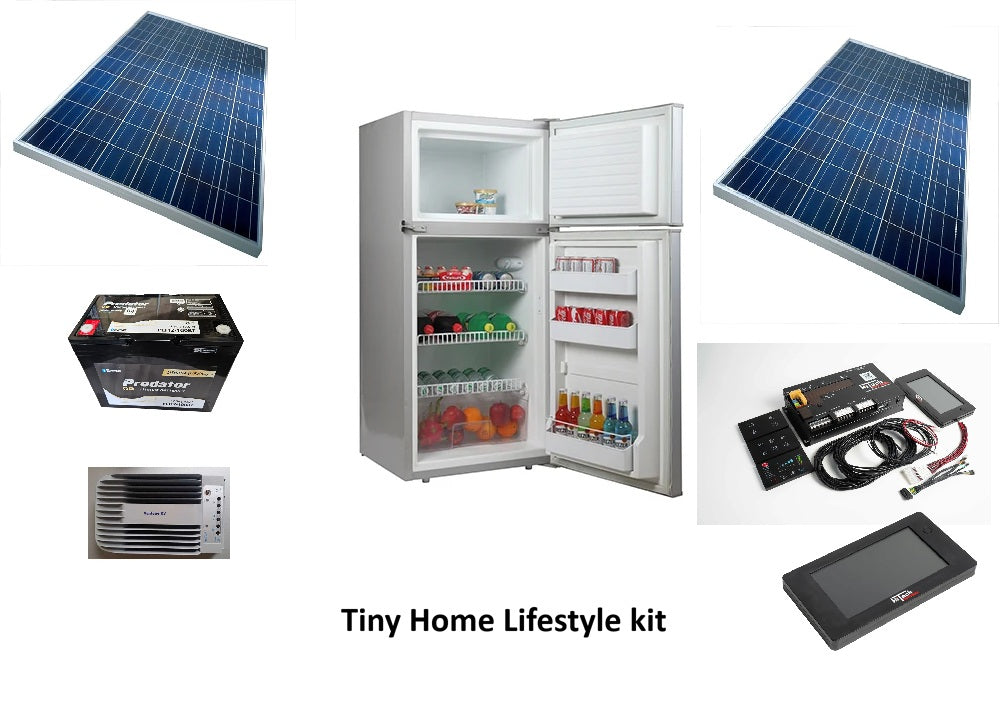

This package contains the following
- Large free-standing tropical-rated DC compressor fridge freezer
- Two x 260-watt high-voltage solar panels
- One 100Amp/hr Lithium Iron LiFePO4 Battery
- One central control power distribution unit, including fuse boards and a touch control board
- 6 meters of solar cable with labels, lugs and plugs
- 2 meters of battery cable with labels, lugs and an inline fuse
- 2 meters of fridge cable with lugs and a plug
Technical Information Fridge
- Tropical rated: 12/24 volt Fridge, 75-watt compressor fridge
- Fridge capacity of 120 litres and a freezer capacity of 39 litres
- Fridge size: 1270mm x 595mm x 575mm (including 60mm door thickness) (HxWxD)
- 2 Year Warranty for fridge components

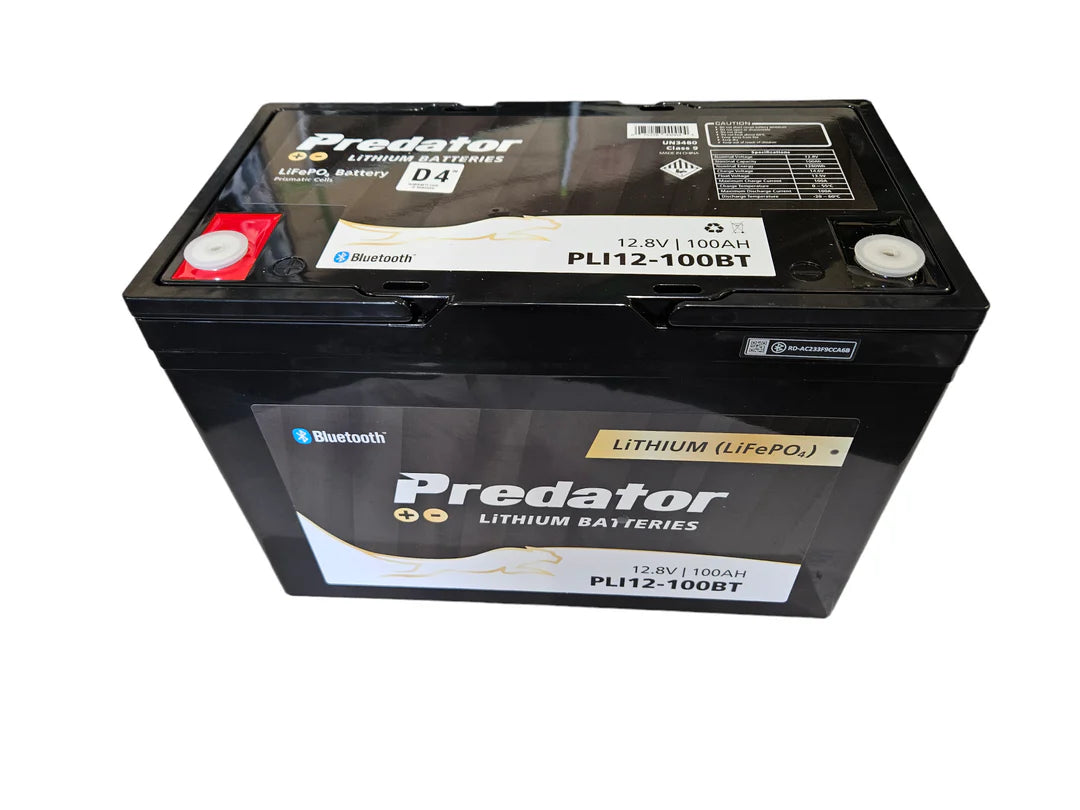

Technical Information Battery
- 100 Amp/hr PLI12-100BT LifePO4 Lithium Battery
- Bluetooth Communication: via App for Android & iOS
- Size: 306 x 168 x 210 mm (L x W x H)
- Nominal Energy 1280Wh
- Discharge cut-off voltage (recommended) 11.2 volts
- Nominal charge voltage 14.6 volts
- Float voltage 13.6 volts
- 2.5-hour fast recharge time
- Maximum charge current 100A
- Recommended charge current 50A
- Capacity: 100Ah
- Weight: 12.9kg
- Operating Temp Range Discharge: -20ºC~55ºC
- Charge: 0ºC~50ºC
- Storage: -20ºC~60ºC
- Average at 25ºC Self-Discharge 6 months
- Please charge batteries before using
- Terminal type E 8mm thread

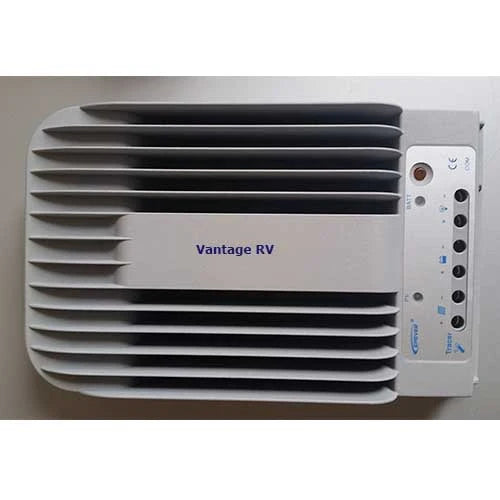

Technical information solar controller
- LED indicator shows the charging status
- LED indicator shows battery status or system errors
- Temperature sensor for regulating ideal charging and discharging values
- Indicators for setting the timer or battery type
- LED digital display, displays the load and work mode status
- Setting the button for load work mode status selection
- Solar Module terminal connection blocks
- Battery terminal connection blocks
- Load terminal connection blocks
- RJ45 Communication Interface for remote digital display
- System voltage 12/24 VDC Auto
- Rated charge current 40A
- Rated discharge current 40A
- Max PV input voltage 100V
- Max PV Input power for a 12-volt system: 520 watts / 24-volt system: 1040 watts

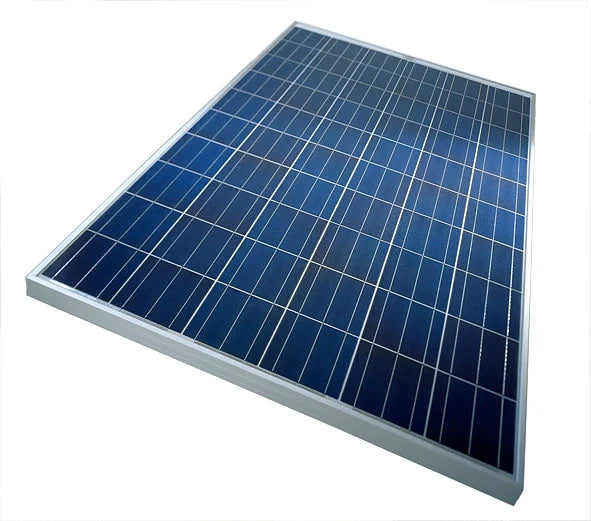

Technical information Solar panels
- Mono-crystalline panel
- Max Power: 260 watts
- The voltage at Pmax: 30V
- Output @ 30 volts = 8.6Amp
- Output @ 12 volts = 21Amp
- Open circuit voltage: 30V
- Weight: 18Kg
- Dimensions: 1640mm x 998mm x 40mm (h x w x d)

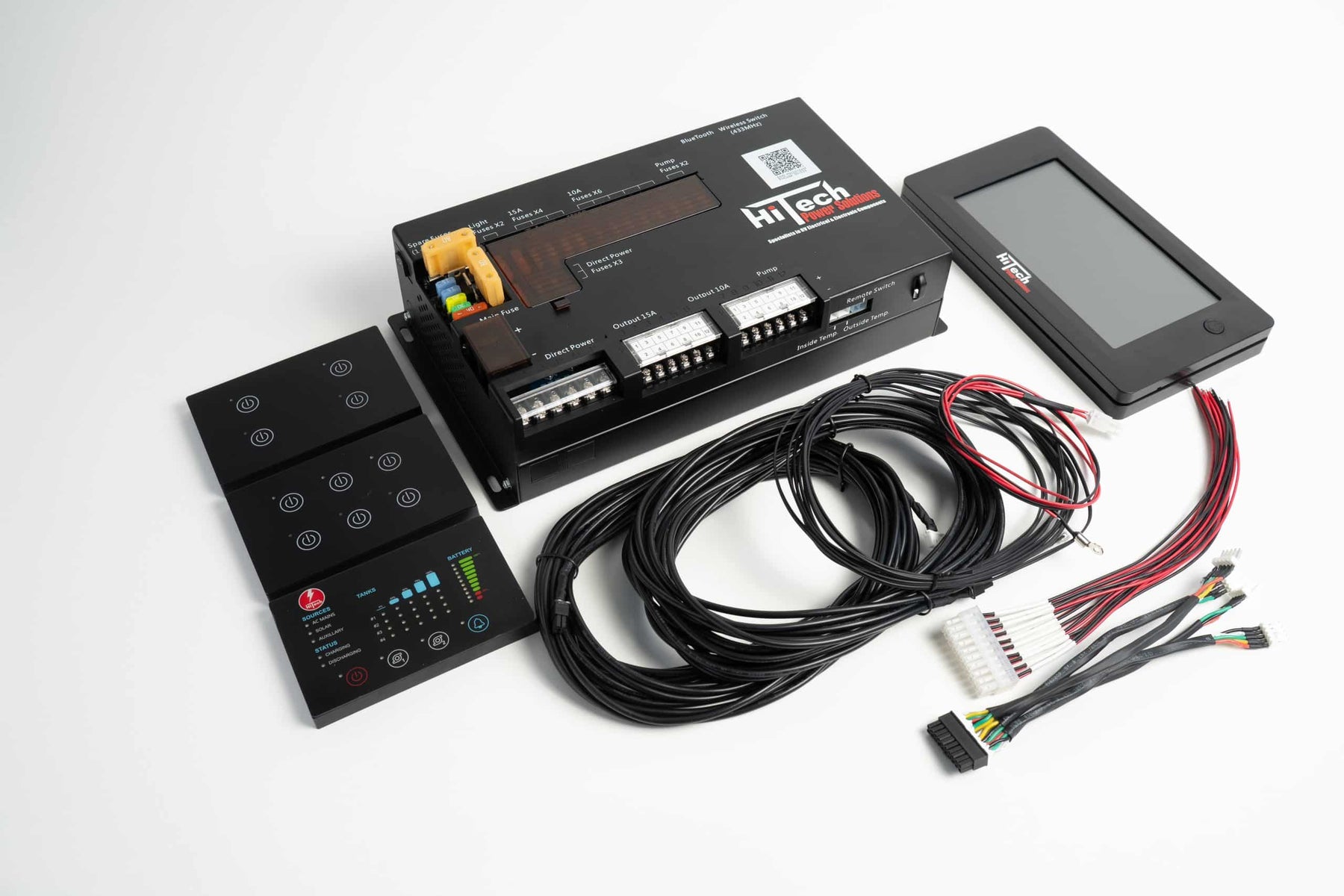

Technical information Central power distribution system
- One centralised control unit that controls key systems, including lighting, pumps, and appliance power outputs
- Wireless light control which supports up to 10 light points with overload protection through an inbuilt 5 amp fuses that are auto-resettable
- Pump control, which can operate two independent pumps with 10 amp fuses
- Up to 6 other power outputs to run any other appliances, such as heaters, boilers, auxiliary lighting, or device charging, consisting of 6 x 10 amp and 4 x 15 amp
- Direct power distribution, which consists of high power terminals, one rated at 30amps and two rated at 20 amps, for monitoring and controlling the charge systems
- Smart monitoring system that includes temperature sensors for inside and out
- Water tank level sensors
- A shunt sensor for power tracking
- Inverter/charge sensor for the battery, AC output and fault status
- Includes a complete installation guide, pre-install checklist, wiring diagrams and safety instructions
- Operating voltage: 12 volt DC
- Max input current: 60 Amps
- Power outputs: 6 x 10A and 4 x 15A Direct high power outputs 1 x 30A and 2 x 20A
- Fuse protection: Multiple fuses for lights, pumps, and other output circuits
- Temperature range -5 to +55 degrees C
- 12 months warranty
