MAXXFAN DOME with Sleeve and LED Light

$242.19
/
Tax included. Shipping calculated at checkout.

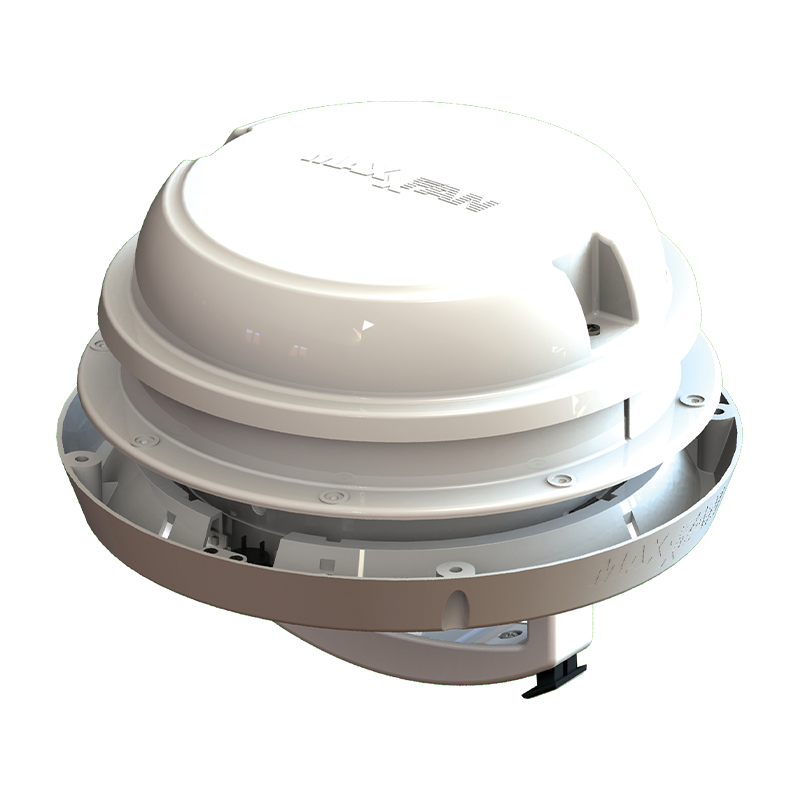

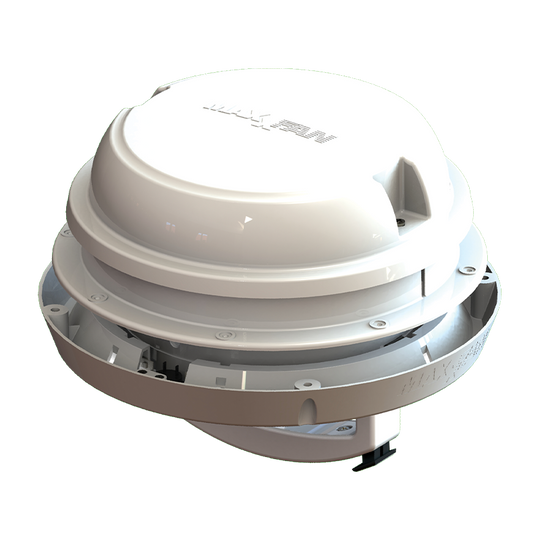

Introducing the MAXXFAN Rooftop and Sidewall Ventilation Fan - A compact 12V solution for rooftop or sidewall ventilation and moisture control in small areas with LED lighting.

Product Description


This 6-inch exhaust fan is ideal for ventilating small areas, delivering adequate air flow and moisture reduction. Perfect for RVs, bathrooms, or cozy spaces, it easily boosts comfort. Featuring a manual lift lid, the MAXXFAN Dome combines functionality and compactness. It is designed to simplify your ventilation needs and ensures a fresh, comfortable environment wherever installed. Enjoy superior air quality and ventilation without sacrificing space or convenience.

The MAXXFAN Dome stands out from standard 365x365mm fan vents thanks to its compact design. It occupies minimal space, measuring only 216.1mm, whether installed on the roof or side. When closed, it has a low profile of just 74.4mm. This sleek size makes it an excellent choice for maximizing space without compromising performance.

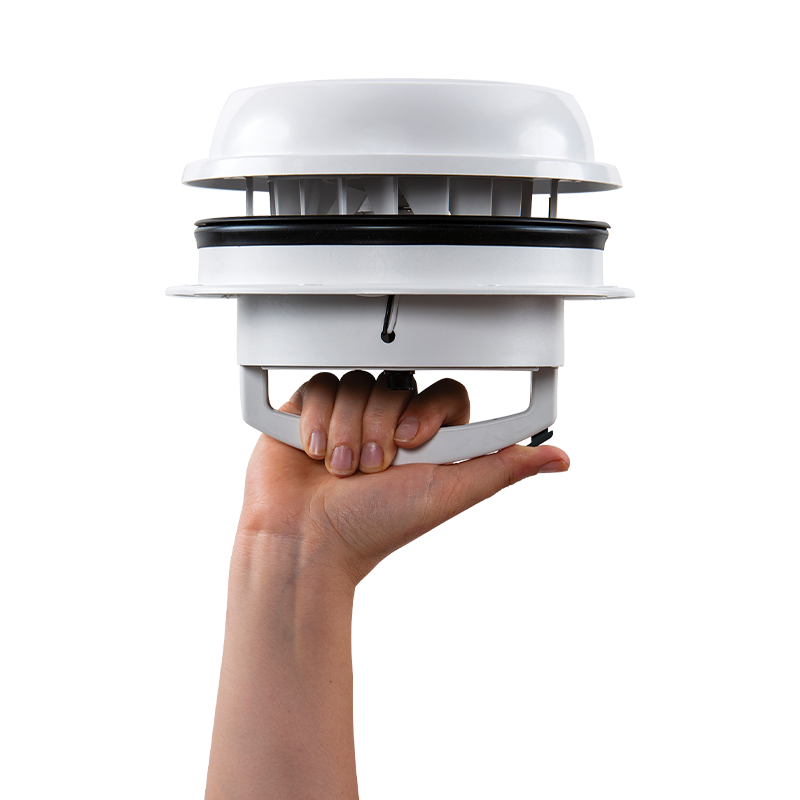

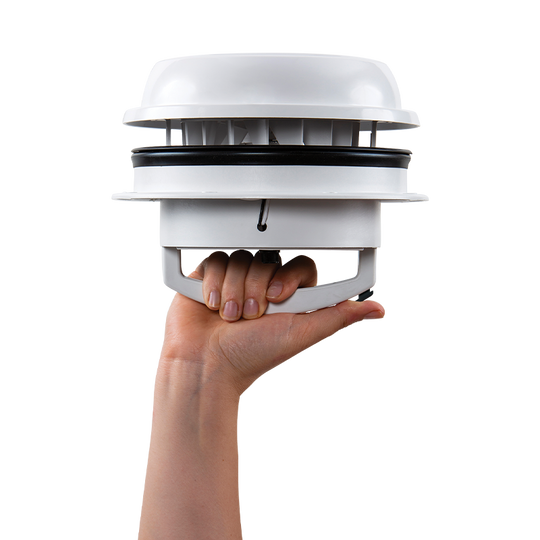

Using the MAXXFAN Dome is simple—just push or pull its large, ergonomic handle to open or close it with ease. The strong 12V exhaust fan offers switchable settings, tailoring ventilation to your needs. Opt for the PLUS model to enjoy a bright LED light integrated into the base, removing the need for extra bathroom lighting and enhancing convenience.


Features

Designed for rooftop or sidewall ventilation applications
6" exhaust only fan with manual lift lid
Locking lid with single-hand push button operation
Removable screens make cleaning a breeze
Designed for 1" roof thicknesses - extensions available up to 6"
Available in white or black
LED Lighting
Matching fan guard included. Fan guard acts as a rain shield and protects your interior from weather and debris. Additionally, the fan guard provides protection from accidental contact with the fan blades.
Specifications
Color White
Cutout Dimensions 6.25"
Built-In Rain Cover Yes
Lid Color White
Fan Speeds 1
Intake and Exhaust Exhaust Only
Controls at Ceiling Yes
