Get this New Zealand-made Motorhome roof rack for the long wheelbase Mercedes Sprinter and VW Crafter panel vans. It provides convenient storage space for kayaks, canoes, surfboards, paddleboards, fishing gear, or rowing boats.

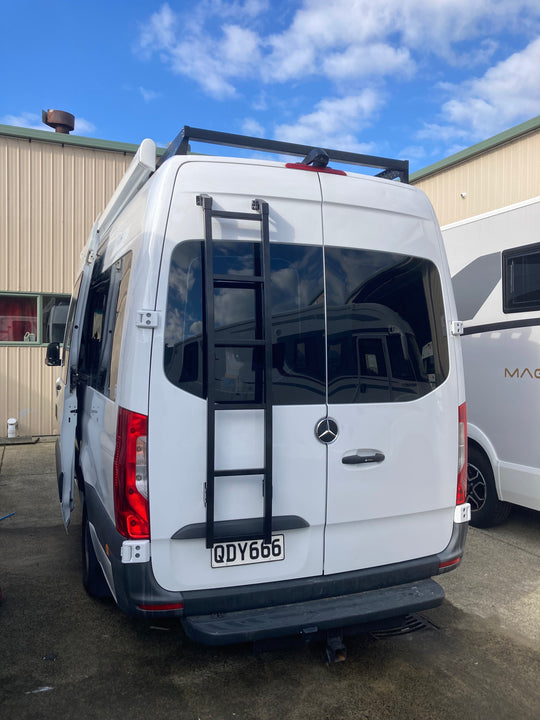

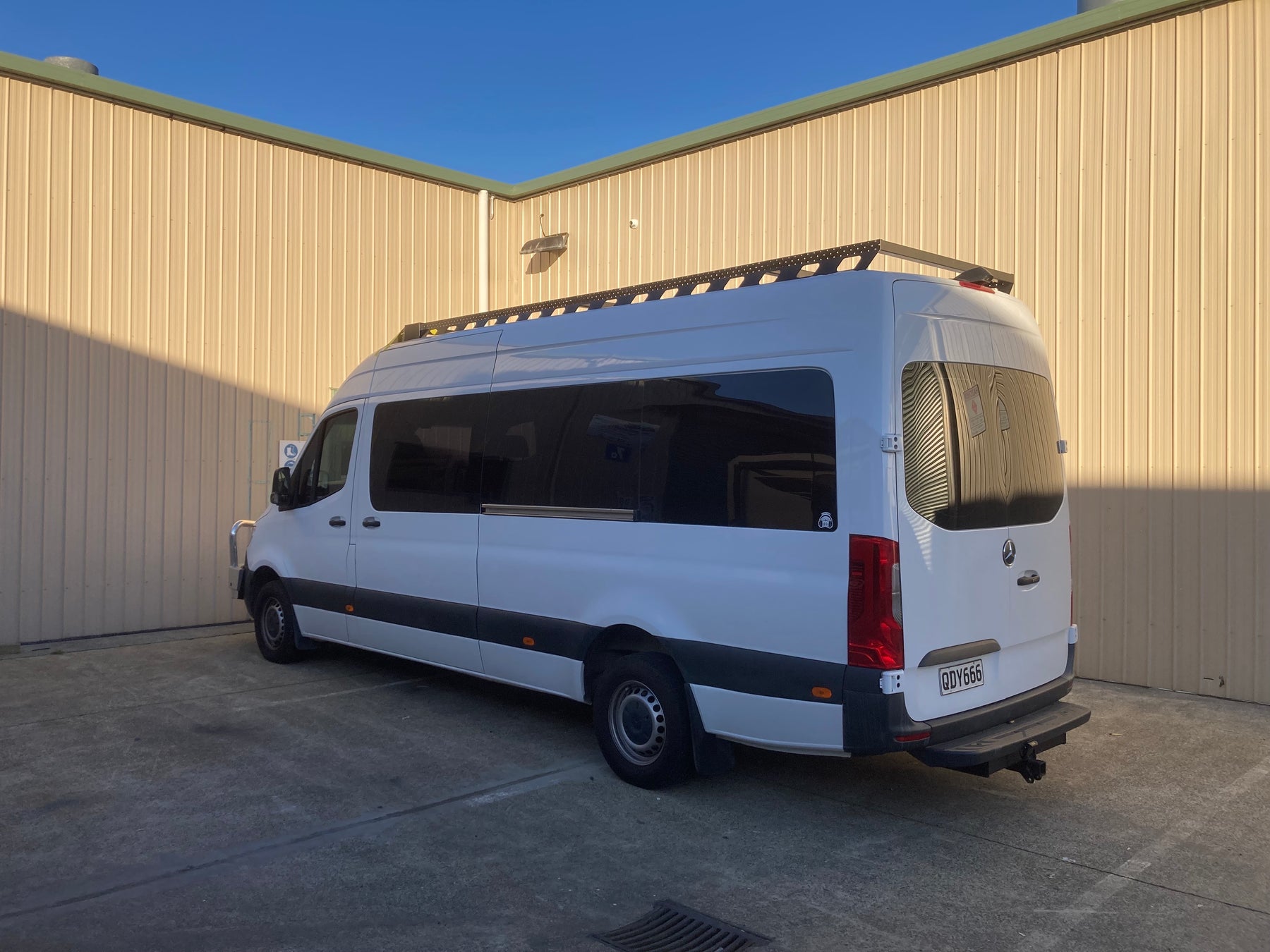

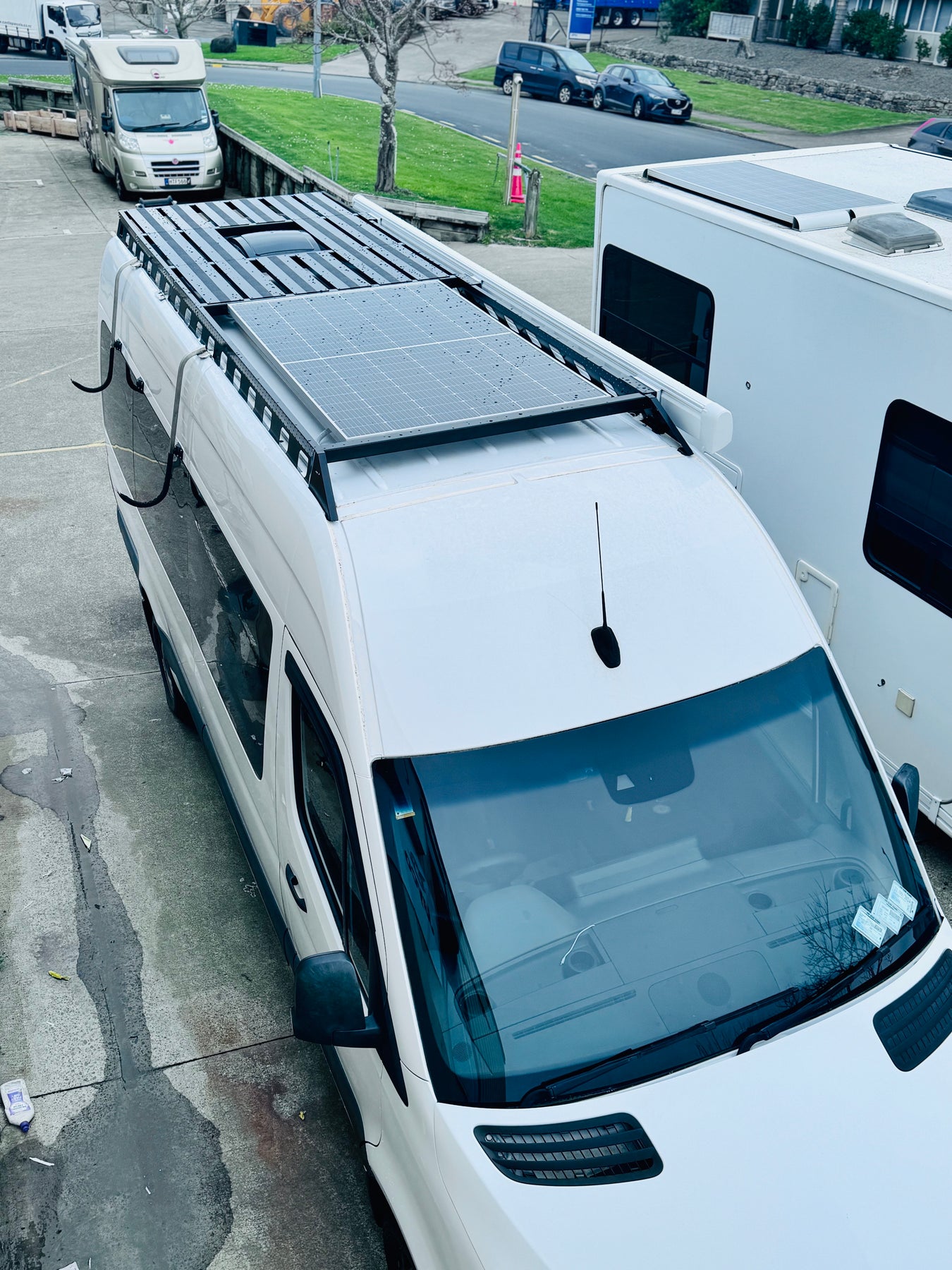

The images are examples of previous installations, and may not be the same as what you want.
This version is designed for vehicles without a roof mount awning; if you already have a van with a roof mount awning, you should buy the VRV-MercRRA.
Mercedes and VW Crafters had the same roof shape until 2017, when VW started manufacturing the bodies in its factory and made some minor changes that are not immediately noticeable; VW vehicles built after 2017 have a curved roof and require a different solution. If in doubt, contact us.
Features
- A lightweight aluminium construction
- Available in black powder-coated
- Sleek and ergonomic in design
- Adaptable in length
- Very versatile, as the cross-support rails can be fitted anywhere along the side frames
- Supplied with three cross rails, you can fit as many rails as you like; just let us know if you want more.
- Compatible with the VRV rear or side-mounted ladder (please order this separately.)
Base Kit Plus Extension
- Kit contains the following:
- 2 x standard right and left-hand side rails 2355mm long
- 2 x short right and left-hand extensions 1400mm long
- 3 x heavy-duty cross rails

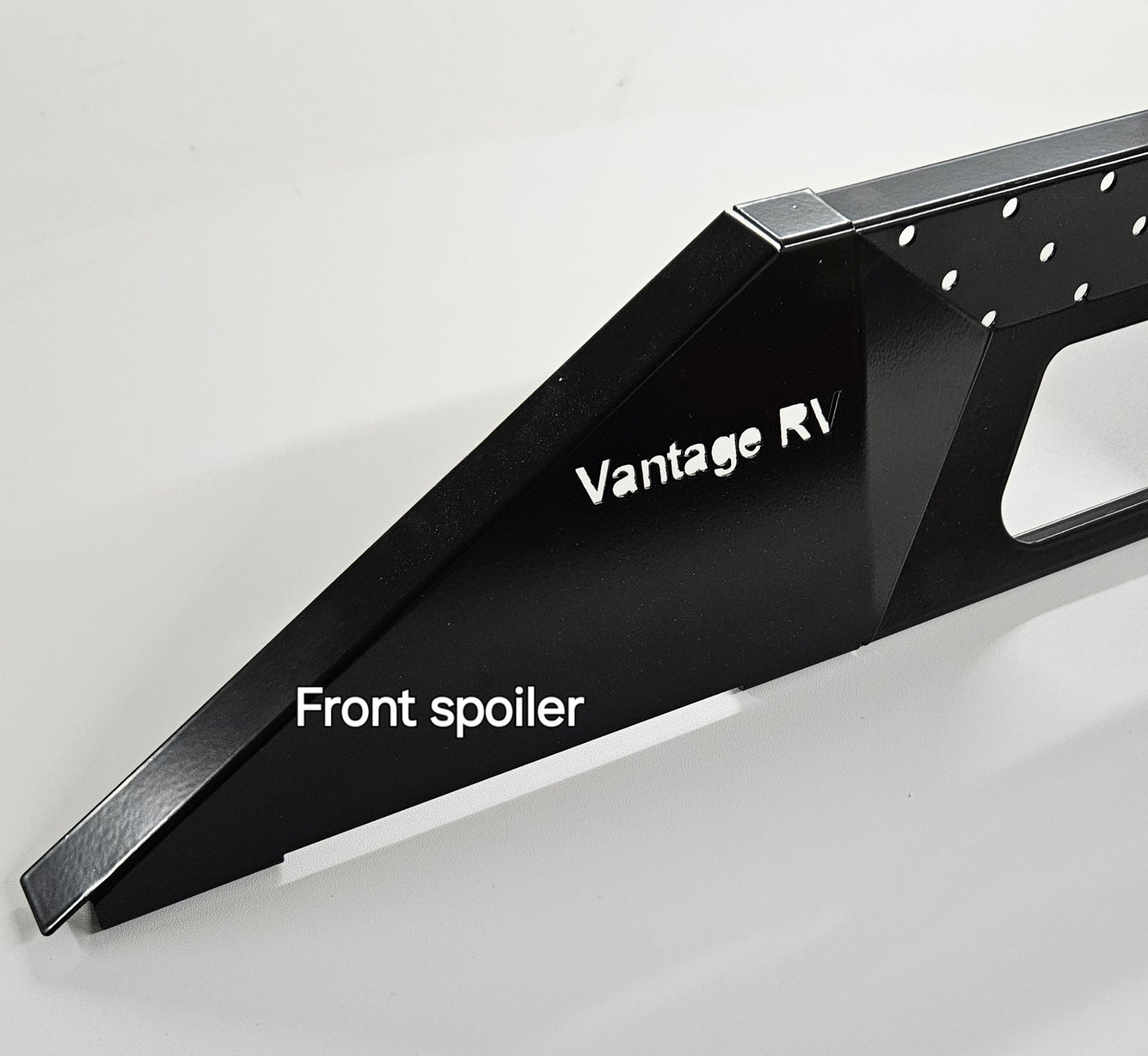

- 2 x Sloping end caps for the front
- 2 x spoiler-shaped undercut rear caps
- 3 x awning brackets that bolt onto the awning side rail
- 1 x Fiamma 4mtr awning
- 1 x Stainless steel assembly hardware kit
- Total length of rack 2355mm + 1400mm = 3755mm plus the end caps
- Height from the roof: 120mm
- Max weight capacity: 200kg
To arrange a fitting, please contact us
Fitting method

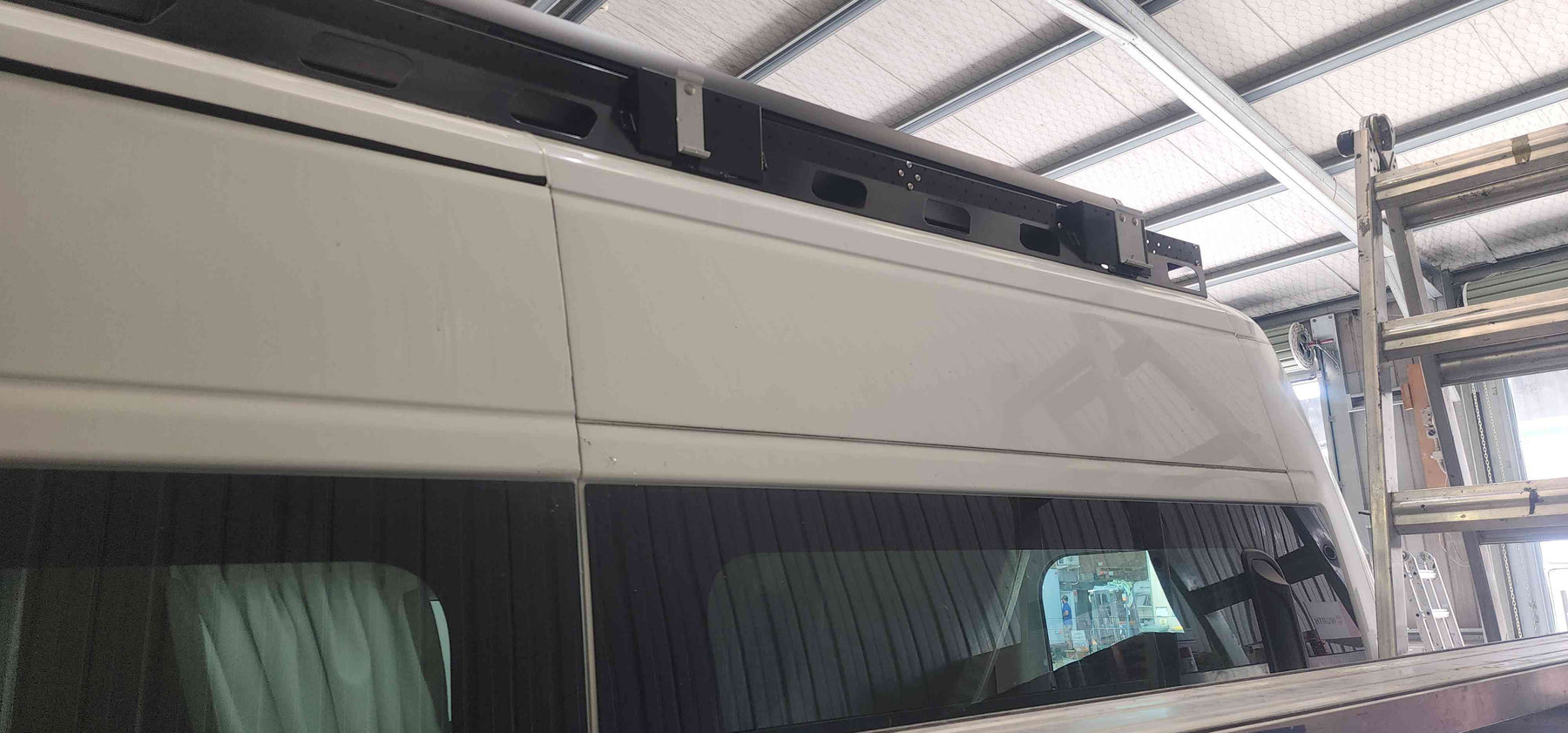

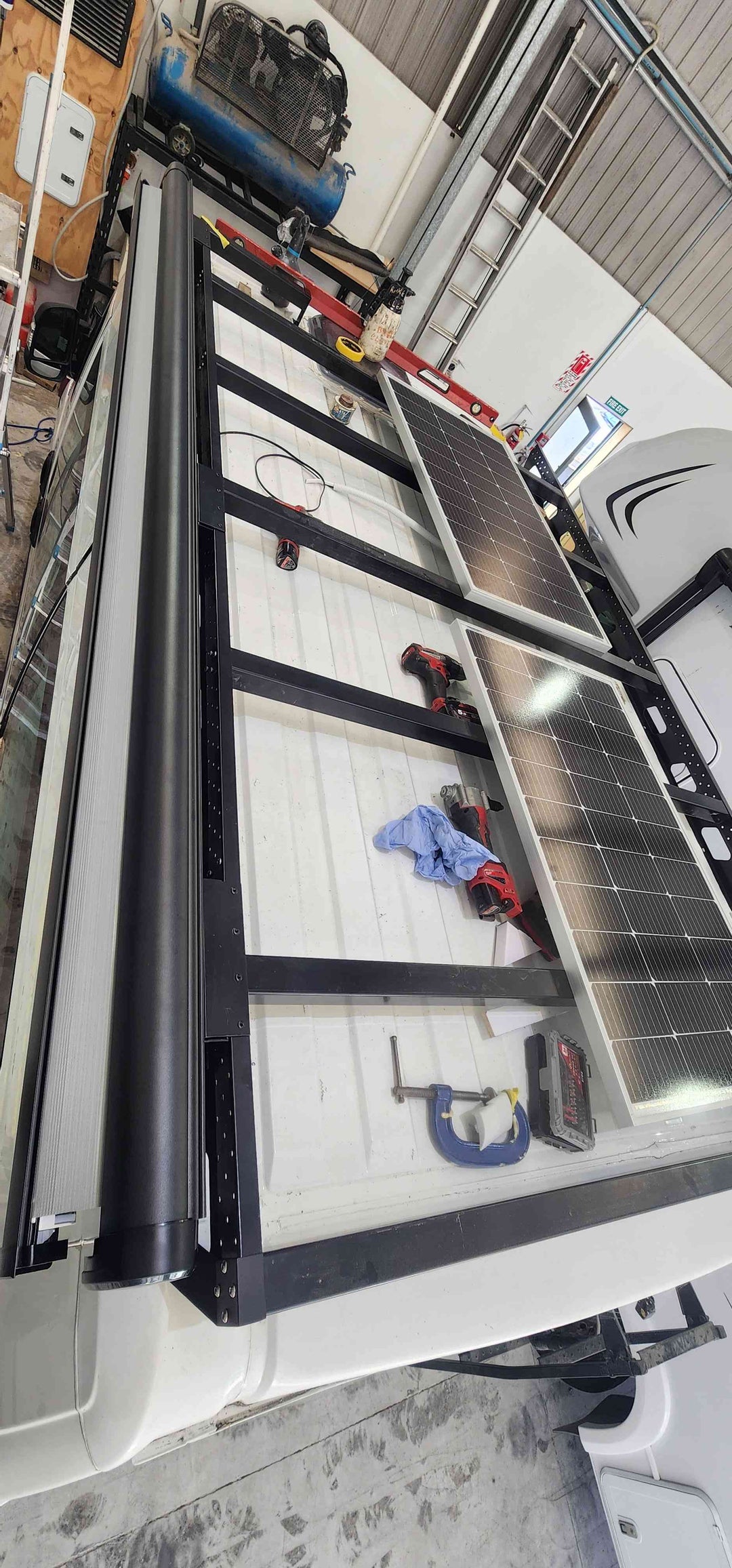

Our roof racks spread the load over the entire length of the side rails, which are bonded in situ using high-quality modern urethane products similar to those used to construct motorhome bodies.
Stainless steel tech screws are sometimes used, but only to anchor the roof rack in place while the urethane sets.
Our roof racks are popular with motorhomes or camper vans constructed within standard commercial panel vans. We apply the same mounting method to the roofs of these vans with excellent results.
Our heavy-duty racks can carry heavy loads. As a bonus, we can fit a wall-mount awning to the side of the roof rack rail.

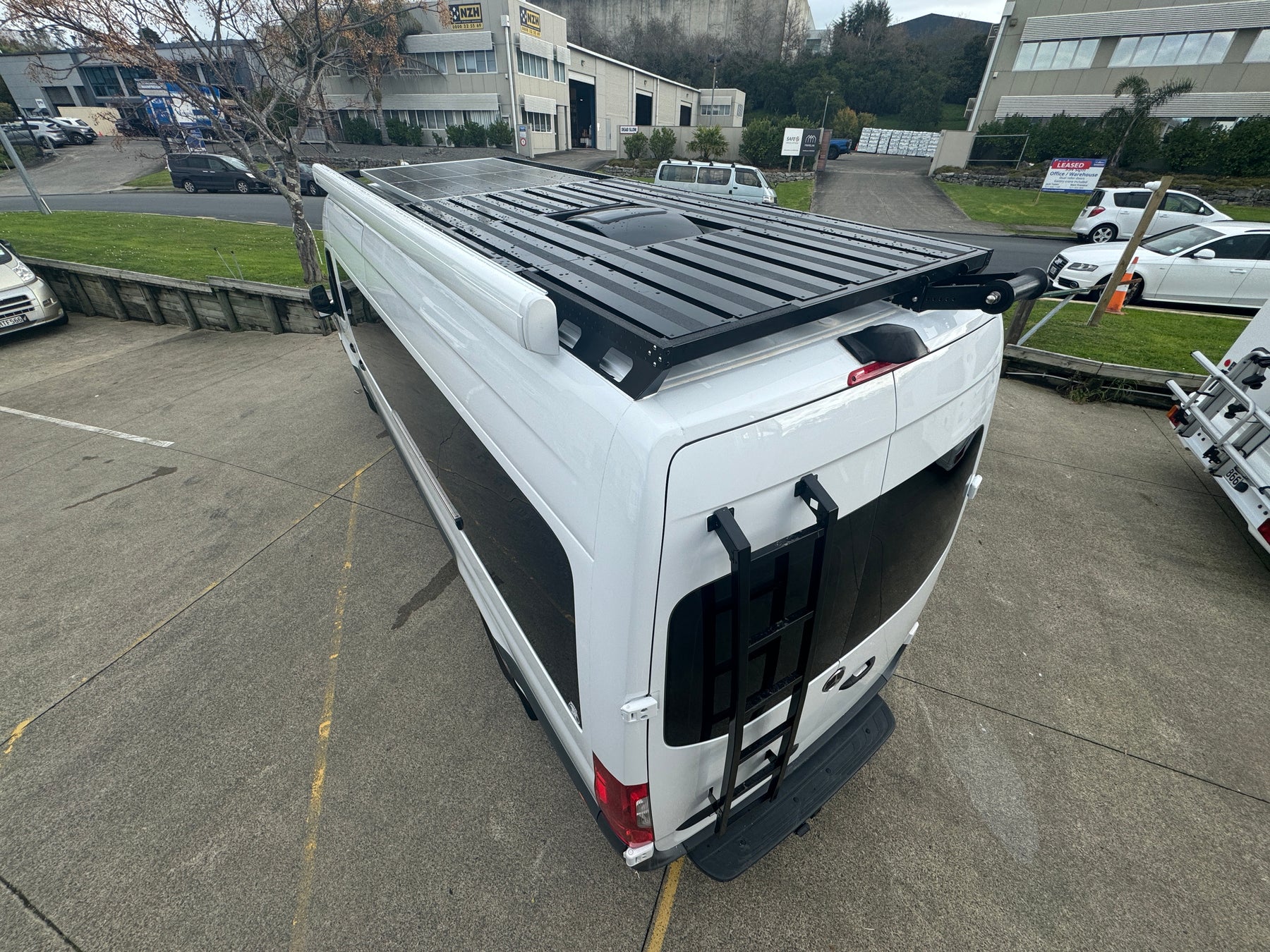

Special orders: This example shows the roof rack with a walkway fitted, not included in this product. If you want something different, let us know. Our innovative team will, no doubt, come up with a solution.
Availability
These items are stocked at another warehouse and sold by multiple New Zealand RV accessory outlets. We do not have instant live monitoring of their stock levels. You can purchase the items through this website; the goods are mostly dispatched from the associated warehouse the next day. If the items are unavailable there, they will be unavailable nationwide. In that case, we can refund you, or the item can go on backorder until it becomes available again and will then be dispatched to you. If you want to check availability before you purchase, please contact us
