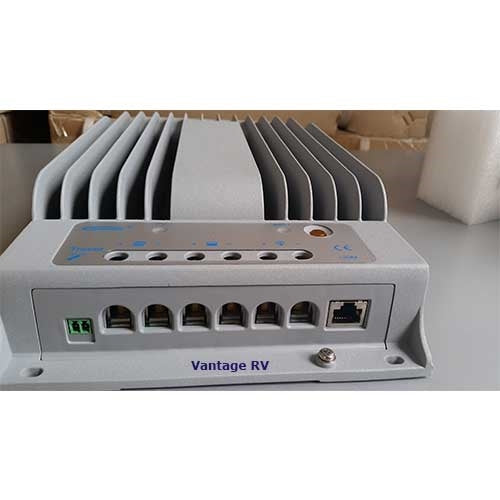

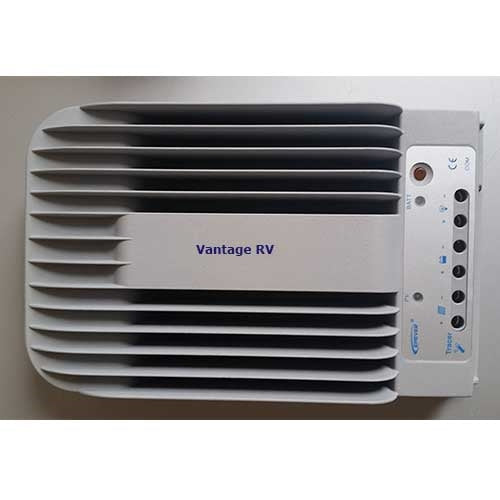

Tracer 30 Amp industrial MPPT Solar Controller

$306.80 $245.44
/
Tax included. Shipping calculated at checkout.

The EP Solar MPPT-type controller is a 30 Amp solar controller. It is used for off-grid solar systems and performs with all our fridges.

MPPT (Maximum Power Point Tracking) is, as far as we know, currently the most efficient type of solar controller and operates best under all environmental conditions.

This is a professional, high-quality 30-amp off-grid solar controller, ideally suited for motor-homes, caravans, and small off-grid homes or baches.
This model allows the loads to be switched separately on the positive terminal, this eliminates potential faults and issues associated with continuous earth terminals in AV splitters, TV satellite systems, and FM splitters on vehicles.

Control the loads, for continues, timed settings or dawn and dusk settings

This is the recommended controller used by our technicians

Please order a digital display separately.

Read more about maintaining your batteries

Read more about solar systems

Do you require batteries?

Do you require solar panels?


These units can be installed at our Silverdale workshop. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz

Features

  • LED indicator shows the charging status
  • LED indicator shows battery status or system errors
  • Multiple load control modes
  • Temperature sensor for regulating ideal charging and discharging values
  • Indicators for setting a timer or battery type
  • LED digital display, displays the load and work mode status
  • Setting the button for load work mode status selection
  • Solar Module terminal connection blocks
  • Battery terminal connection blocks
  • Load terminal connection blocks
  • RJ45 Communication Interface for remote digital display

Technical Information

  • System voltage 12/24 VDC Auto
  • Rated charge current 30A
  • Rated discharge current 30A
  • Max PV input voltage 150V
  • Max PV Input power for a 12-volt system: 390 watts / 24-volt system: 780 watts
  • Dimensions: 285 mm Long x 160 mm Wide x 64 mm Deep
  • 1 Year Factory Warranty

Minimum Requirements:

  • Recommended cable diameter from the solar panel should be no less than 4mm2
  • The solar controller should always be fitted in a dust-free dry environment.
  • Always run loads from the load terminals on the right side of the solar controller, unless the draw exceeds 20 amps. That way, you can always monitor how much energy you generate and use.

Shipping is calculated at checkout, Large items like fridges are shipped to your nearest Mainfreight depot to keep costs down, smaller items are shipped with Posthaste and calculated based on your postal code.

Shipping and return policies

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Did you know?

We rebuild caravan suspension

The European caravan suspension should be re-rubbered when the caravan has been overloaded or when rubbers get old and compressed

Learn more?

Is your house battery playing up?

Flick us an email, and we will try to assist you in finding a solution

Or read our information pages

Do you need help fixing your Caravan or Motorhome?

We have a skilled team of technicians who can help with any RV issues, such as solar systems, satellite systems, motor movers, roof racks, side racks, bike racks, tanks, storage issues, suspension issues and much more, have a look at the services we provide

Services

Don't take our word for it, read what our customers say

★★★★★

Hi Guys, you sorted out a new system for me a few months ago & I
wanted to let you know that its all worked brilliantly, from
incorporating it into what I already had, to how well its been working
since setup. I realise that it would have been difficult for you guys to
make something that fitted long distance & working off pics but you did
really well & I'm chuffed. It was exactly what I needed. So many thanks.

Beth Caley (Carterton)
★★★★★

Many thanks to you and your team for a great job.

After a few hours at Vantage RV our motorhome is a lot quieter on the road.

We had a snag list and a wish list, from the outset Johan went through and explained how the faults would be fixed he also explained the pitfalls of our wish list.

He had a vast knowledge and was happy to share that with us and help us in our first year as motorhome owners.

Alec got on with the job and attended to the faults...result all fixed and better than new.


Great to have a courtesy car to visit surrounding beaches and let you get on with it. Thanks again for a great job.

Ann & Ken
★★★★★

You were recommended by Brian from GIC.

Harry and Johan were a pleasure to deal with.

Very knowledgeable indeed and carried out top-notch workmanship to our van.

Providing a quote was very helpful. First, they replaced the floor, sorted out the plumbing and replaced the boiler.

The second visit the shower floor was replaced, new shower tray fitted, repaired grey water tanks, all new LED's.

Sorry to bore you but the list was endless. Excellent service 😊

Paul & Fenella
★★★★★

Wow thank you.

I’m super happy with the service and knowledge we’ve received from you.

And the amount of the invoice is a really nice surprise.

I’ll be sure to use you for everything in the future, I’m a very happy customer!

I don’t think I’ve got time to come up today so I’ll probably pick up tomorrow if that’s ok.

Lee Ollerenshaw
★★★★★

I purchased equipment for my van conversion from Vantage and found their prices to be extremely competitive, and their technical knowledge to be top-notch. They also performed the Self-Containment inspection for me.

As they do top work, they are quite busy, so best to plan in advance when you want to schedule something, or simply order parts online.

Huge thanks to Harry for his expert advice and willingness to entertain all of my questions, and to Antoinette for handling the parts orders and coordination for my inspection!

Author name

Los Angeles, CA

★★★★★

We have been Motorhoming and NZMCA members for 25+ years. Whilst we have dealt with some good companies over this time and lovely people, we would say without question that Vantage would be #1. Having had a new van built 23 years ago the time came to replace our water heater. The service we received from Vantage was amazing and lead to further work including replacing other appliances and refurbishments. The work was done to a very high standard. In all our dealings with Vantage, the service has been impeccable, prompt and their communication with us was great. Their quotes are detailed and accurate. Janice is at the forefront and has been wonderful to us both. Johan goes out of his way to help despite being incredibly busy. With his amazing craftsmanship and knowledge, he comes up with solutions that at times required thinking 'outside the square'. His advice instills confidence to make an informed decision. Thank you to Harry and your team. As retirees, we can honestly say that your hard work, ethics, and values shine out in this day-and-age. 😊 Philip and Patsy Bates

Philip and Patsy Bates

You may also like

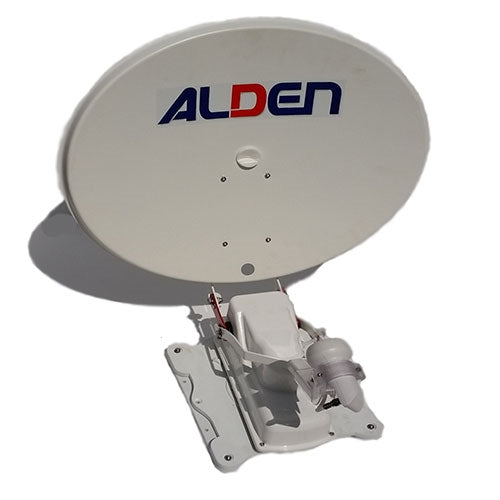

Next: Alden Onelight 65 Satellite dish
