EPEVER Triton 20 Amp MPPT Controller 2210N

$359.00 $291.12
/
Tax included. Shipping calculated at checkout.

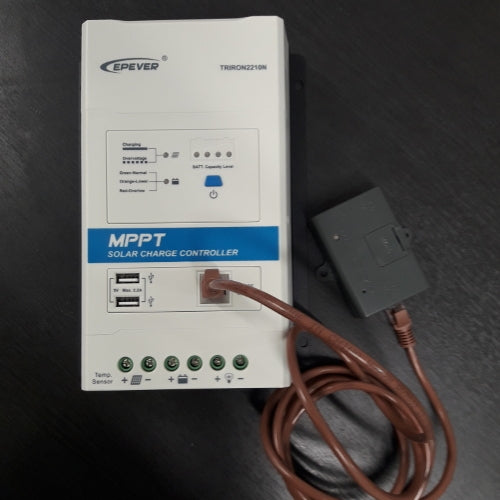

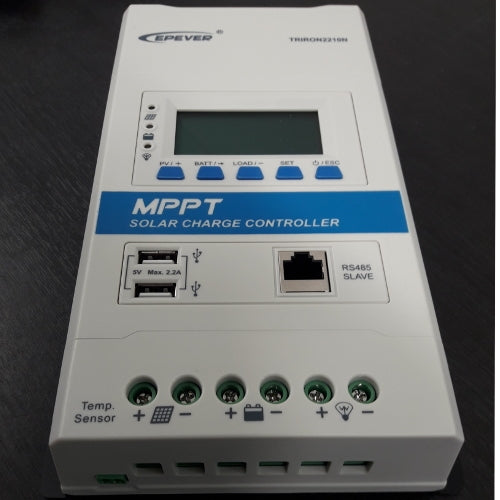

The TRIRON EPEVER Solar MPPT-type controller is a 20 Amp solar controller suited for motorhome solar systems. The interface module supplied here has 2 x USB charge points for Phones or Tablets and an RS-485 connection for a Wi-Fi server or a data logger. (not included). This controller comes with a display that shows the voltages at the panel and the battery. This indicates amps being used and amps being produced.

MPPT (or Maximum Power Point Tracking) is currently, as far as we know, the most efficient type of solar controller and performs better in all environmental conditions.

These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247

Features

  • Advanced Maximum Power Point Tracking technology, with efficiency gains of no less than 99.5%
  • High-quality components, enabling conversion efficiency of up to 98%
  • Ultra-fast tracking speed

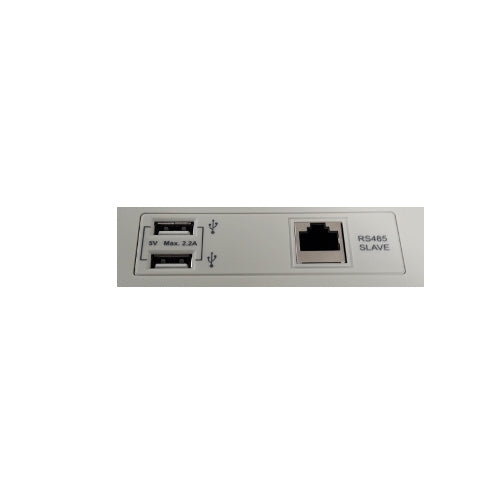

  • 2 x USB charge points for Phones and Tablets

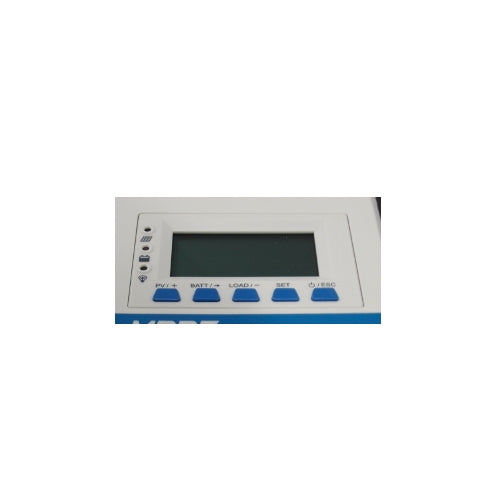

  • Digital display
  • Connection for a remote temperature sensor for monitoring battery temperature
  • Indicators for setting the timer or battery type
  • Setting the button for load work mode status selection
  • Solar Module terminal connection blocks
  • Battery terminal connection blocks
  • Load terminal connection blocks
  • RS-485 Communication Interface for wifi and PC monitoring

Technical Information

  • System voltage 12/24 VDC Auto
  • Rated charge current 20A
  • Rated discharge current 20A
  • Max PV input voltage 100V
  • Max PV Input power for a: 12-volt system: 260 watt / 24 volt system: 520 watts
  • Dimension: 158mm x 62.7mm x 238.3mm (wxdxh)

Minimum Requirements

  • Recommended cable diameter from the solar panel should be no less than 4mm2
  • Solar controller should always be fitted in a dust-free, dry environment.
  • Run loads from the load terminals on the right side of the solar controller unless the draw exceeds 20 amps. That way, you can monitor how much energy you are using
