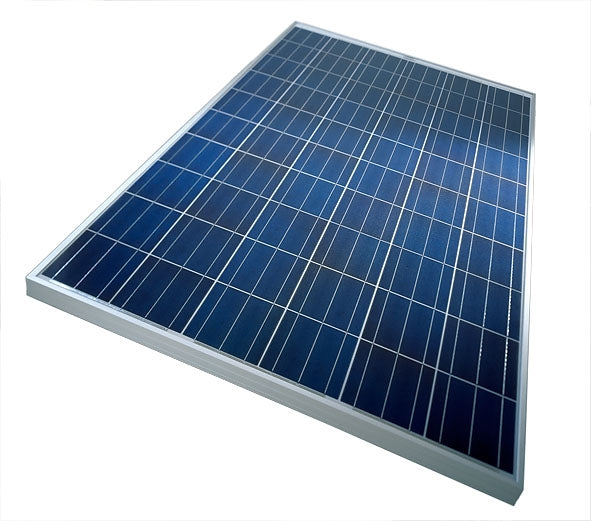

This is a 260-watt mid voltage solar panel, suitable for most caravans and motorhomes, this is the maximum sized panel you can fit with a 20 amp MPPT type solar controller, A system like this is perfect for freedom camping with a vehicle that has a 3-way gas fridge, if you plan to use this size panel with a vehicle that has a compressor fridge, then you may struggle to produce enough in the wintertime, or in overcast conditions.
This panel with an appropriate controller may produce about 20 amps at 12 volt in full sunshine but only about 3 amps at 12 volts in overcast weather conditions. So always calculate your solar array based on worst-case scenarios.
A single panel like this can be used for running the following efficient 12 or 24-volt solar fridges:
VRV110
This panel with an appropriate controller may produce about 20 amps at 12 volt in full sunshine but only about 3 amps at 12 volts in overcast weather conditions. So always calculate your solar array based on worst-case scenarios.
A single panel like this can be used for running the following efficient 12 or 24-volt solar fridges:
VRV110
Contact us to have this fitted Tel: 09 427 8247
Features
- Aluminum frame
- Toughened glass panel
- Hermetically sealed in the frame
- Positive and negative solar plug connectors
Technical Information
- Mono-crystalline panel
- Max Power: 260 watt
- The voltage at Pmax: 30V
- Output @ 30 volts = 8.6Amp
- Output @ 12 volts = 21Amp
- Open circuit voltage: 30V
- Weight: 18Kg
- Dimensions: 1640mm x 998mm x 40mm (h x w x d)
