EPEVER 20 Amp MPPT Controller
EPEVER 20 Amp MPPT Controller
EPEVER 20 Amp MPPT Controller
EPEVER 20 Amp MPPT Controller
EPEVER 20 Amp MPPT Controller
  • Load image into Gallery viewer, EPEVER 20 Amp MPPT Controller
  • Load image into Gallery viewer, EPEVER 20 Amp MPPT Controller
  • Load image into Gallery viewer, EPEVER 20 Amp MPPT Controller
  • Load image into Gallery viewer, EPEVER 20 Amp MPPT Controller
  • Load image into Gallery viewer, EPEVER 20 Amp MPPT Controller

EPEVER 20 Amp MPPT Controller

Regular price
$232.00
Sale price
$232.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

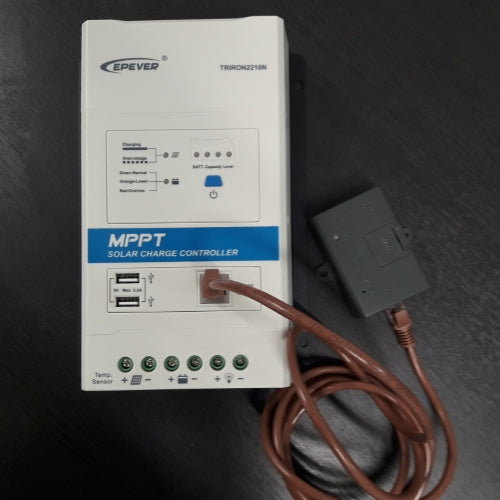

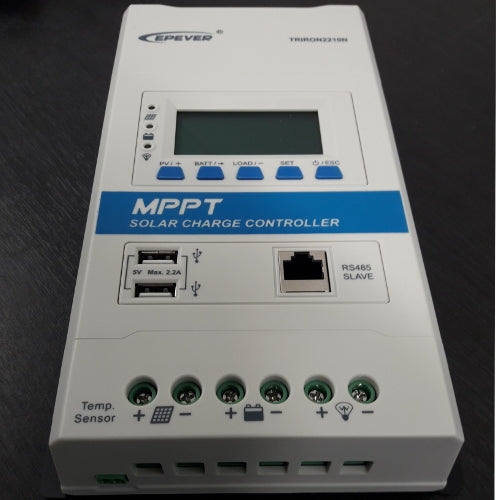

The TRIRON EPEVER Solar MPPT type controller, is a 20 Amp solar controller suited for motor-home solar systems. The interface module supplied here has 2 x usb charge points for Phones or Tablets and a RS485 connection for Wifi Server, or Data Logger. (not included). This controller comes with a display, which tells you what the voltages are at the panel and at the battery. This indicates amps being used and amps being produced.

It is new on the market, but we have been very impressed with this controller so far

MPPT (or Maximum Power Point Tracking) is currently, as far as we know, the most efficient type of solar controller and performs better in all environmental conditions.

These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
  • Advanced Maximum power Point Tracking technology, with efficiency gains of no less than 99.5%
  • High quality components, enabling conversion efficiency of up to 98%
  • Ultra fast tracking speed

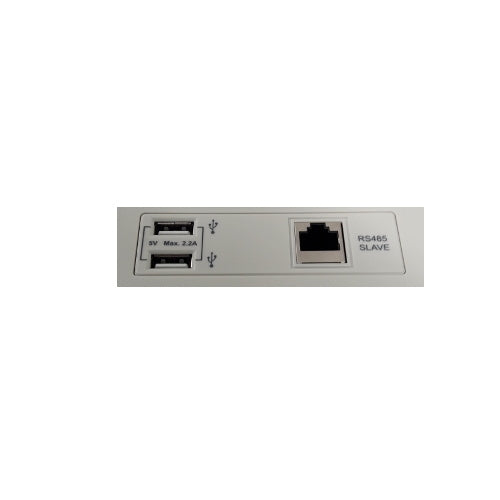

  • 2 x USB charge points for Phones and Tablets

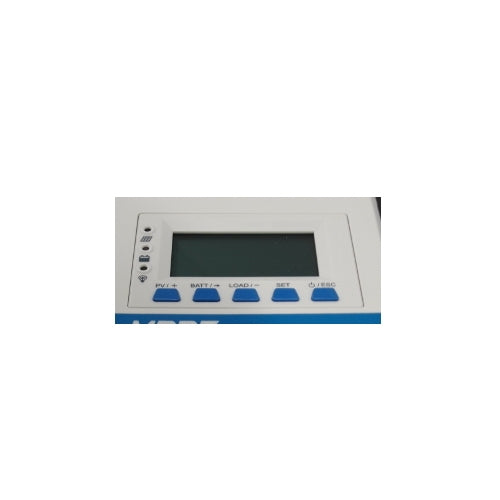

  • Digital display
  • Connection for Remote Temperature sensor for monitoring battery temp
  • Indicators for setting timer or battery type
  • Setting button for load work mode status selection
  • Solar Module terminal connection blocks
  • Battery terminal connection blocks
  • Load terminal connection blocks
  • RS-485 Communication Interface for wifi and PC monitoring
Technical Information
  • System voltage 12/24 VDC Auto
  • Rated charge current 20A
  • Rated discharge current 20A
  • Max PV input voltage 100v
  • Max PV Input power for a: 12 volt system 260 watt / 24 volt system 520 watt
  • Dimension: 158mm x 62.7mm x 238.3mm (wxdxh)
Minimum Requirements
  • Recommended cable diameter from solar panel should be no less than 4mm2
  • Solar controller should always be fitted in dust-free, dry environment.
  • Run loads from the load terminals on the right of the solar controller, unless the draw is greater than 20 Amp. That way you can monitor how much energy you are using
