EPEVER 20 Amp PWM Solar Controller
EPEVER 20 Amp PWM Solar Controller
EPEVER 20 Amp PWM Solar Controller
  • Load image into Gallery viewer, EPEVER 20 Amp PWM Solar Controller
  • Load image into Gallery viewer, EPEVER 20 Amp PWM Solar Controller
  • Load image into Gallery viewer, EPEVER 20 Amp PWM Solar Controller

EPEVER 20 Amp PWM Solar Controller

Regular price
$29.00
Sale price
$29.00
Regular price
$69.00
Sold out
Unit price
per
Shipping calculated at checkout.

Clearance stock

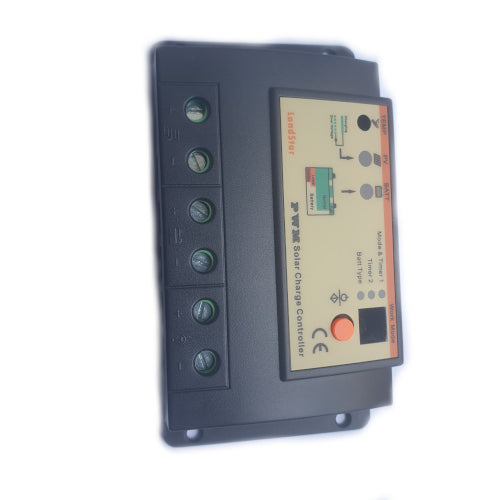

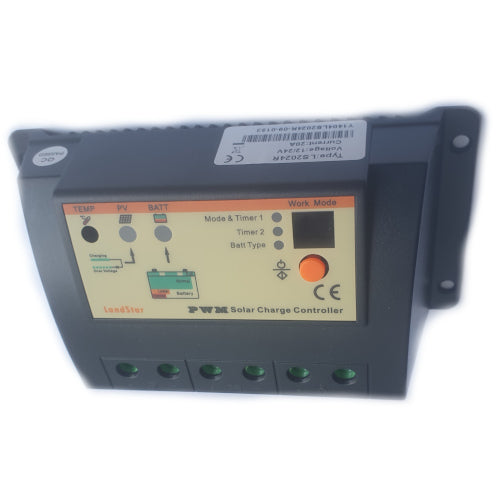

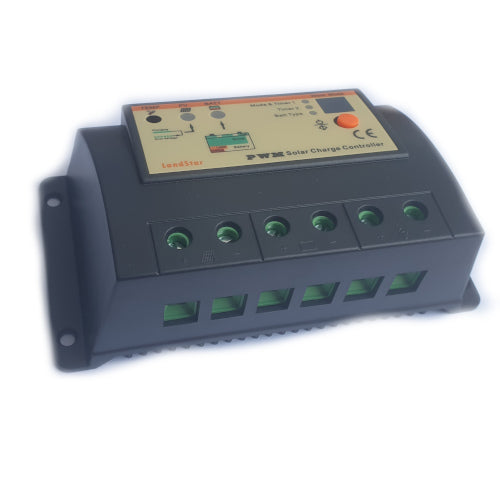

The LandStar EPEVER trusted brand is a 20 amp PWM-type Solar controller. Ideal for motorhomes or boats for charging the batteries via Solar..  The controller has very basic charge indicators displayed using lights. A remote display can be connected to the RJ-45 socket

These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz

Features

  • 3 stage PWM type charging Bulk 14.6V, Boost 14.4V, and Float 13.8V
  • Solar Module terminal connection blocks
  • Battery terminal connection blocks
  • Load terminal connection blocks

Technical Information

  • System voltage 12 or 24 volts
  • Rated charge current 20A
  • Max PV input voltage 30v
  • Max PV Input power for a: 12-volt system 240 watt / 24-volt system 480 watt
  • Dimension: 145mm x 45mm x 75mm (wxdxh)
