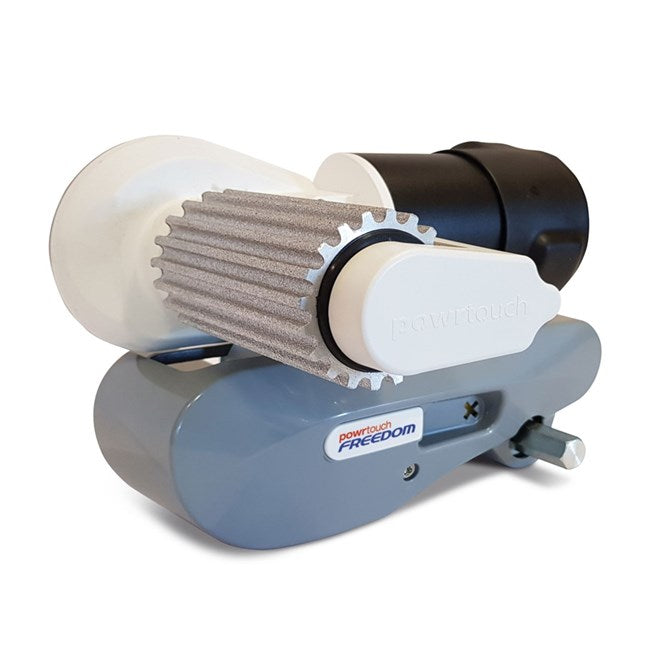

Ideal for single-axle lightweight European or British caravans, The motors engage onto the tires of the caravan and push it along forward or backward; the motors will turn either way, enabling the user to steer the vehicle into very tight spaces accurately
This motor mover can be engaged to the wheels with a special tool that locks the motors onto the wheels.
The units will fit on most standard ALKO chassis using the parts provided in the box.
The motor movers are lightweight for their strength, weighing approximately 35Kg
They work well on a balanced caravan with not too much weight on the front tow hitch; a heavy hitch tends to dig into the ground as the caravan swings the front around, especially if the ground is soft or uneven
Spec:
- Manual engagement to the wheel
- Soft start and soft stop technology
- Will switch off automatically if out of the range of the remote control or if there is a malfunction
- Robust motor
- Compact design
- Fairground clearance
Technical Information
- Operational Voltage: 12V
- Average Current Consumption: 20 Amps
- Max current 80 Amps
- Speed: 28cm per sec.
- Weight: 35kg
- Maximum Tyre width: 205mm
- Safe Working Load: 2000kg on a 25% gradient
- Minimum battery requirement 100 Amp/hr
- 2 Year Factory Warranty
