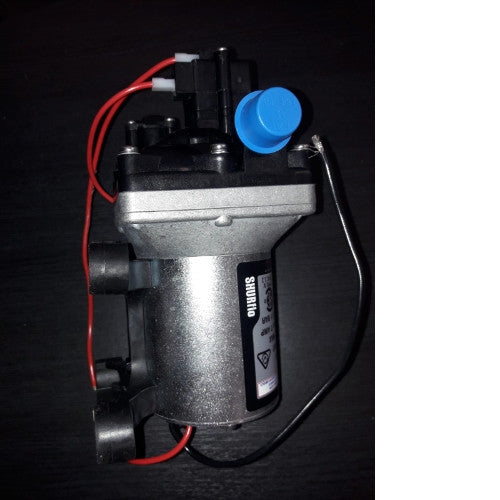

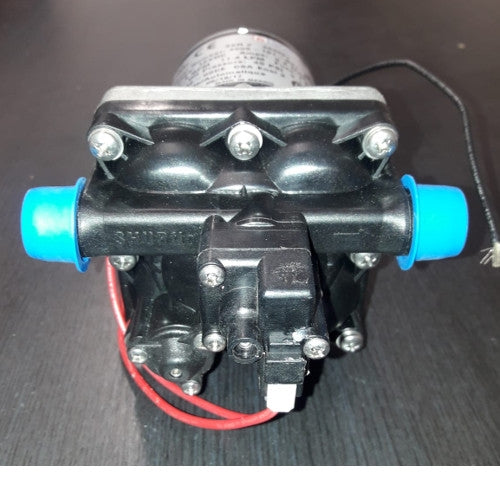

This 4 diaphragm pump with a one-piece diaphragm and internal by-pass valve, is a pressure pump that switches off at 30Psi (2.1bar)
No micro switches required on the taps as it has an internal pressure switch.
Please note this pump must be installed with a pre filter.
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Technical Information
No micro switches required on the taps as it has an internal pressure switch.
Please note this pump must be installed with a pre filter.
These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz
Features
- 4 chamber diaphragm pump
- Thermally protected
- Requires a pre-filter
Technical Information
- Weight 2.5kg
- Inlet PSI: 30 Psi (2.1bar) Max
- Flow rate 10 Leter/minute
- 24V DC
- Thermal overload protection
- Consumption of 2.6 Amp
- Housing: Aluminium, steel, and Food grade plastic
- Dimensions: 205mm x 125mm x 111mm (l, w, h)
- 1 Year Factory Warranty
