Make towing, reversing and campsite manoeuvring easier with the SPHERE AERO Wireless HD Camera Kit. Designed for caravans, RVs, motorhomes and tow vehicles, this camera kit gives you a clearer view of what’s happening behind you, helping take the guesswork out of reversing, lane changes and tight parking situations.
With support for up to 4 cameras, multiple viewing modes and a high-resolution monitor, the SPHERE AERO is built for drivers who want better visibility and more confidence on the road.
Whether you’re backing into a caravan park site, keeping an eye on traffic behind the van, or navigating those “just a little further back” moments, this wireless camera system helps make the job simpler.
Key Features
Wireless HD camera system
Enjoy a clearer rear-view setup without complicated video cabling between your camera and monitor.
Supports up to 4 cameras
The monitor can support up to four cameras, making it suitable for larger RV setups or drivers who want multiple viewing angles.
Multiple viewing options
Choose from single, split screen or quad view depending on your setup and driving needs.
Adjustable display settings per camera
Each camera display can be individually adjusted, giving you better control over how your views appear on screen.
Switchable grid lines
Turn grid lines on or off to suit your preference when reversing or positioning your RV.
Wide-angle camera view
The camera offers a 127° horizontal and 170° diagonal viewing angle, helping you see more of what’s behind you.
Built tough for outdoor use
With an IP69 waterproof rating, the camera is designed to handle harsh weather and road conditions.
Wide operating temperature range
Built to perform in demanding Australian travel conditions, with operating temperatures from -20°C to 70°C.

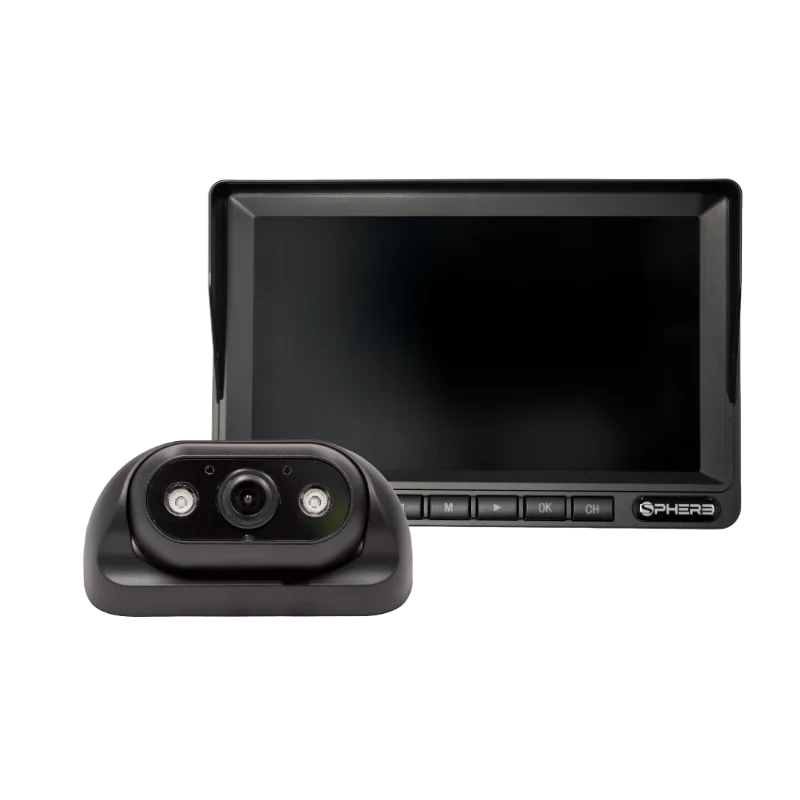

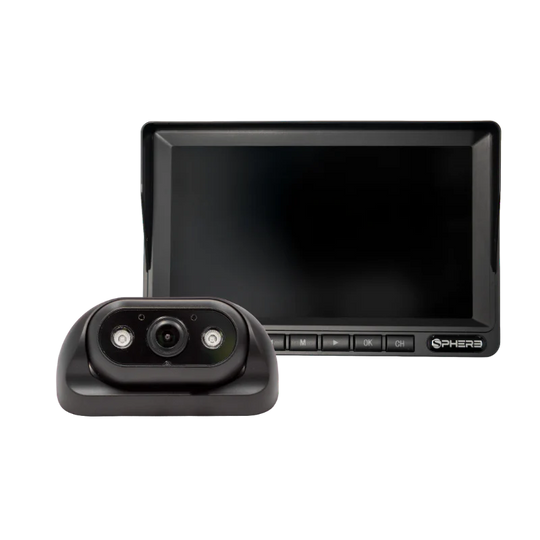

Monitor Specifications
Supports NTSC and PAL video systems
Supports up to 4 cameras
Single, split-screen and quad viewing modes
Grid lines can be switched on or off
Operating frequency: 2400–2483.5MHz
Transmitted power: 18db
Resolution: 1280(H) x 1024(V)
Contrast: 500:1
Brightness: 500cd/m²
Response time: 25ms
Power supply: DC12–36V
Operating temperature: -20°C to 70°C
Storage temperature: -30°C to 80°C

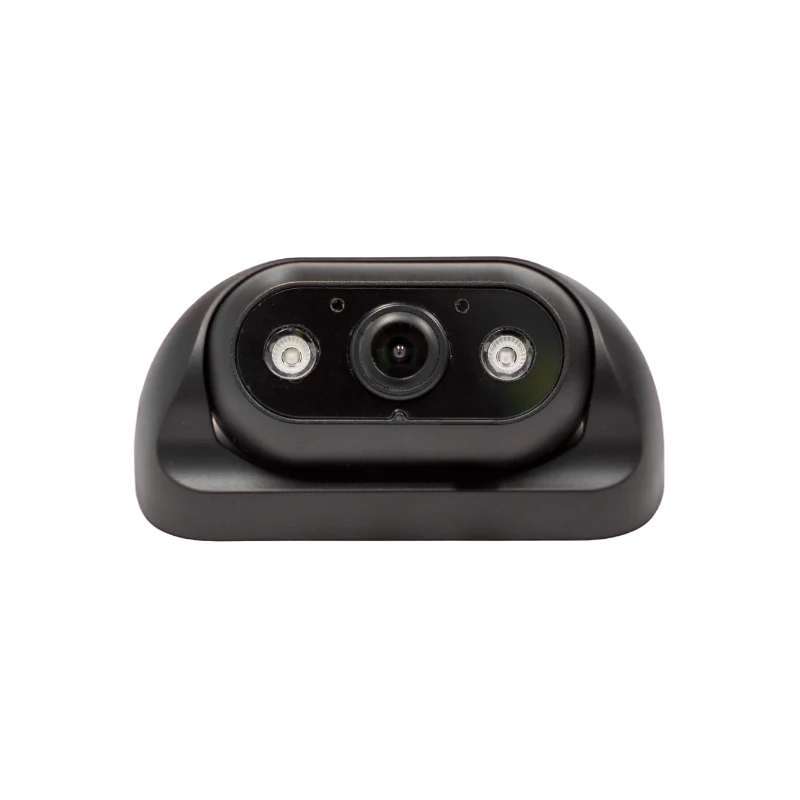

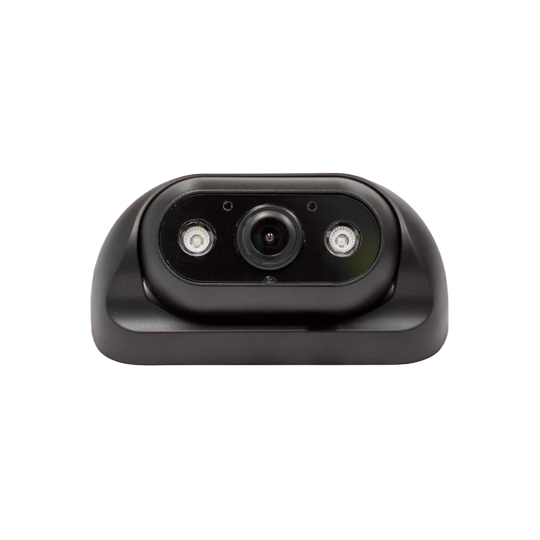

Camera Specifications
Image sensor: 1/2.7 inch Starlight
HD picture elements: 250,000 pixels
View angle: 127° horizontal / 170° diagonal
Resolution: 1000TV lines
TV system: PAL/NTSC
Waterproof rating: IP69
Minimum illumination: 0.5 lux
Power supply: DC12–36V
Operating frequency: 2400–2483.5MHz
Operating temperature: -20°C to 70°C / RH 95% max
Storage temperature: -30°C to 80°C / RH 95% max
Availability
These items are stocked at another warehouse and sold by multiple New Zealand RV accessory outlets. We do not have instant live monitoring of their stock levels. You can purchase the items through this website; the goods are mostly dispatched from the associated warehouse the next day. If the items are unavailable there, they will be unavailable nationwide. In that case, we can either refund you or place the item on backorder until it becomes available again, at which point it will be dispatched to you. If you want to check availability before you purchase, please contact us
