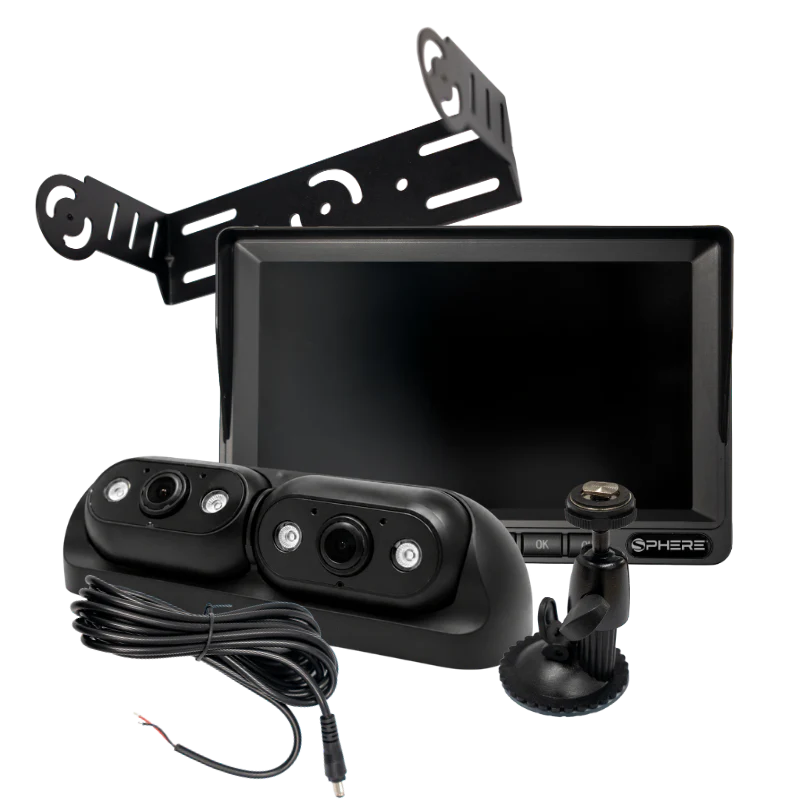

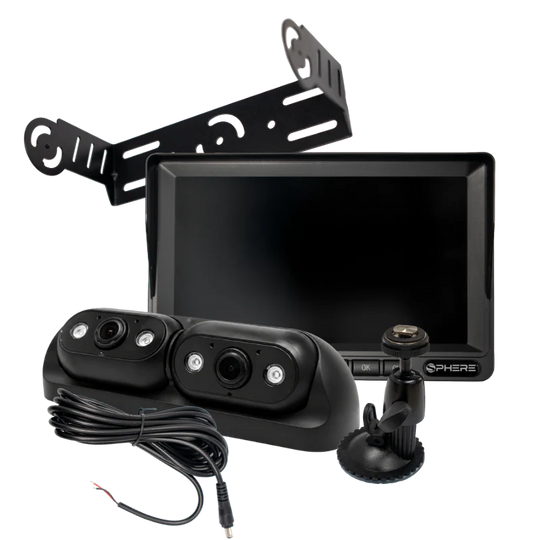

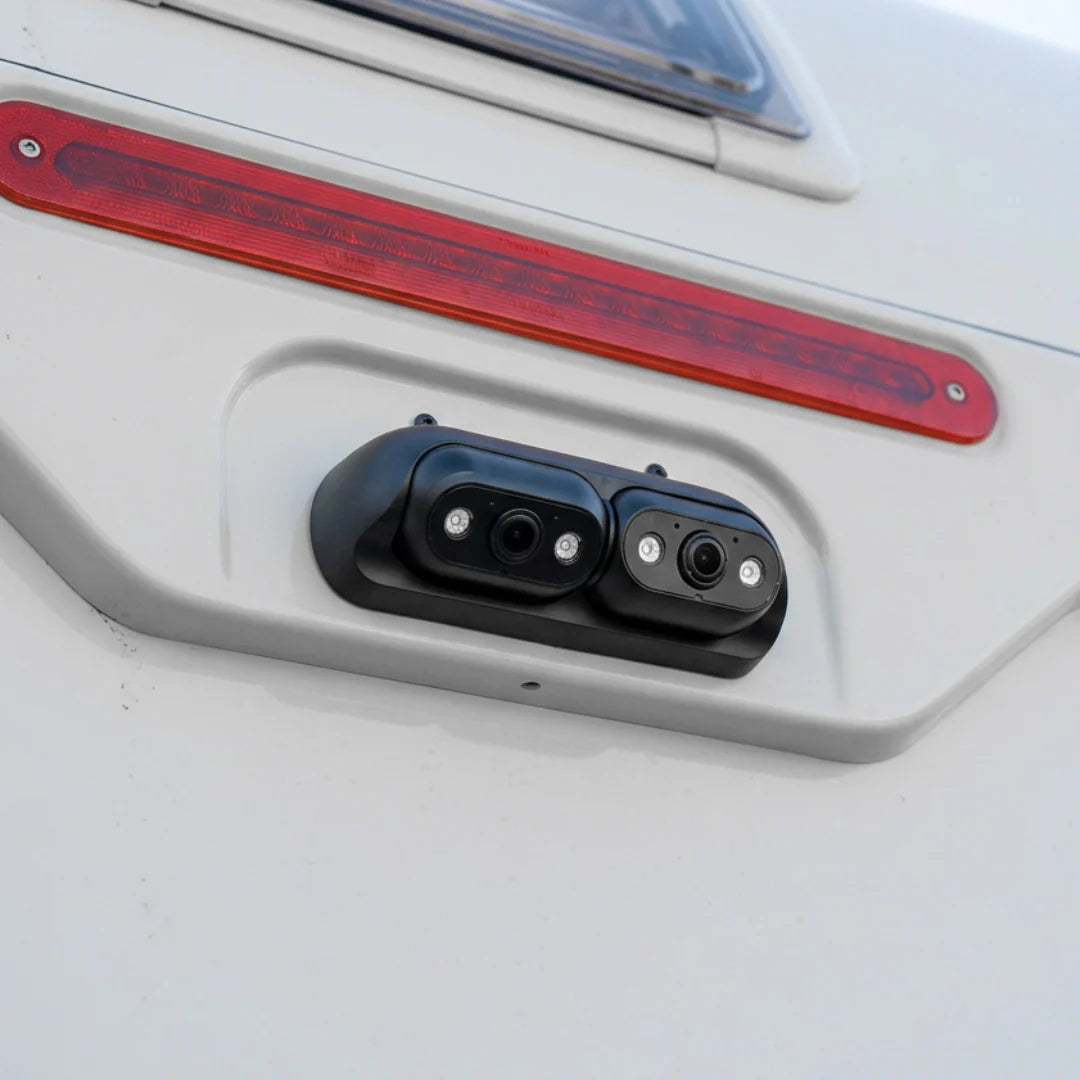

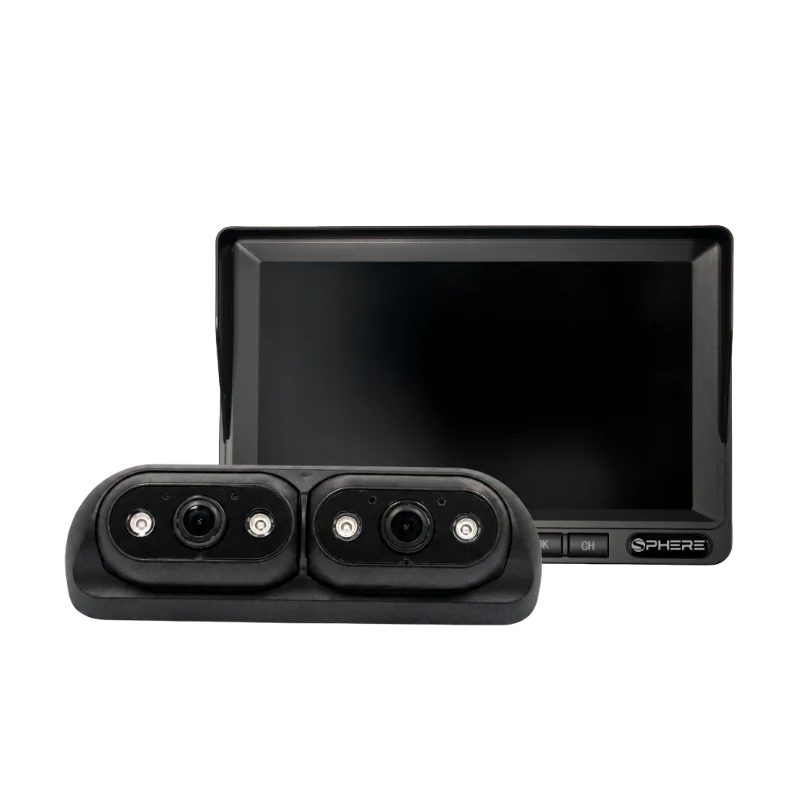

Make reversing, towing and manoeuvring your RV easier with the SPHERE AERO Wireless HD Dual-Camera Kit. Designed for caravans, motorhomes and larger touring setups, this wireless HD camera kit gives you a clearer view around your vehicle, helping reduce the guesswork when backing into a site, lining up the van or keeping an eye on what’s behind you.
This dual camera kit is ideal for RV travellers who want extra visibility without relying on a single rear-view angle. With support for up to 4 cameras, flexible viewing modes and switchable grid lines, the SPHERE AERO gives you practical visibility for everyday touring.
Key Features

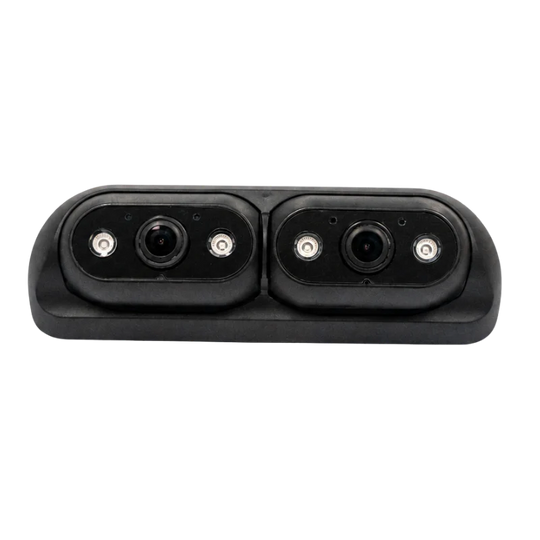

Dual wireless HD camera kit
Includes a dual-camera setup, giving you greater visibility around your RV than a single-camera system.
Supports up to 4 cameras
The monitor can support up to four cameras, making it a flexible option for RVers who may want to expand their setup later.
Multiple viewing options
Choose from single, split screen or quad view depending on your camera setup and driving situation.
Adjustable display settings per camera
Each camera view can be adjusted individually, helping you tailor the display to your preferred setup.
Switchable grid lines
Grid lines can be turned on or off, making it easier to reverse, park or line up your RV when needed.
Wide-angle camera view
The camera features a 127° horizontal and 170° diagonal viewing angle to help capture more of the area behind or around your RV.
Built for outdoor travel conditions
With an IP69 waterproof rating and a wide operating temperature range, the camera is designed to handle tough road and weather conditions.
12V–36V power compatibility
Suitable for a range of caravan, RV and vehicle electrical setups.

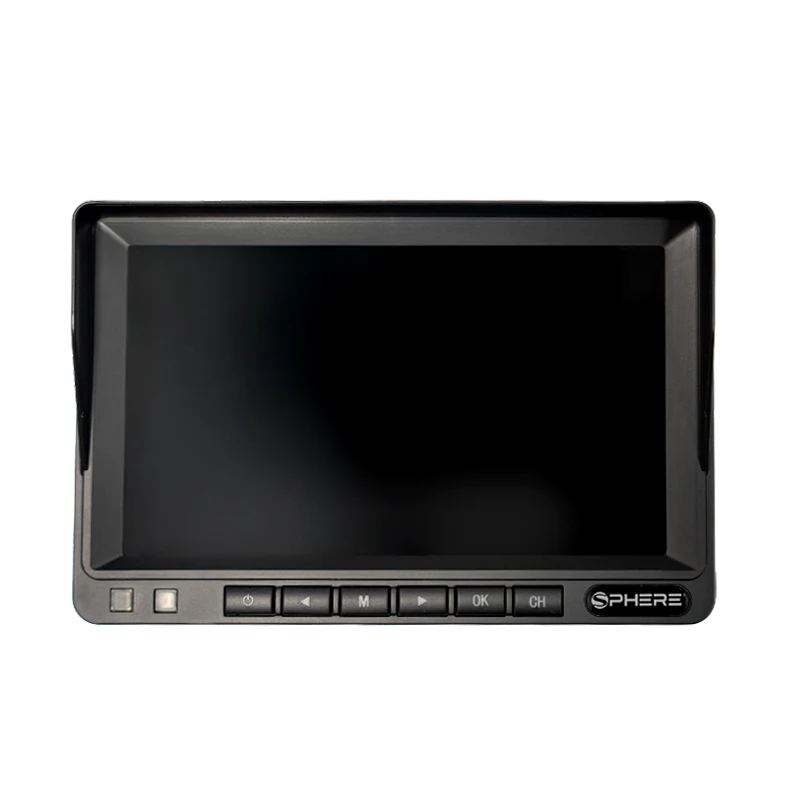

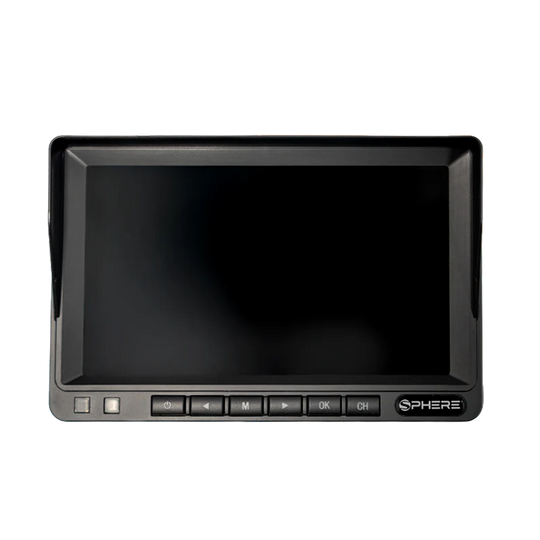

Monitor Specifications
Supports NTSC and PAL video systems
Supports up to 4 cameras
Single, split-screen and quad viewing modes
Grid lines can be switched on or off
Operating frequency: 2400–2483.5MHz
Transmitted power: 18db
Resolution: 1280(H) x 1024(V)
Contrast: 500:1
Brightness: 500cd/m²
Response time: 25ms
Power supply: DC12–36V
Operating temperature: -20°C to 70°C
Storage temperature: -30°C to 80°C

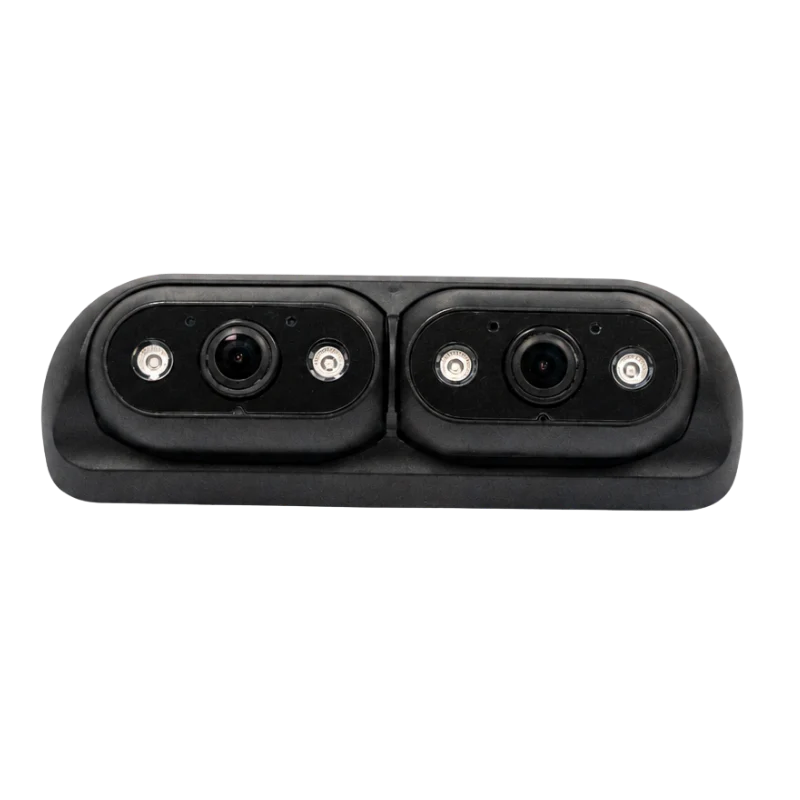

Camera Specifications
Image sensor: 1/2.7 inch Starlight
HD picture elements: 250,000 pixels
View angle: 127° horizontal / 170° diagonal
Resolution: 1000TV lines
TV system: PAL/NTSC
Waterproof rating: IP69
Minimum illumination: 0.5 lux
Power supply: DC12–36V
Operating frequency: 2400–2483.5MHz
Operating temperature: -20°C to 70°C / RH 95% max
Storage temperature: -30°C to 80°C / RH 95% max
Availability
These items are stocked at another warehouse and sold by multiple New Zealand RV accessory outlets. We do not have instant live monitoring of their stock levels. You can purchase the items through this website; the goods are mostly dispatched from the associated warehouse the next day. If the items are unavailable there, they will be unavailable nationwide. In that case, we can either refund you or place the item on backorder until it becomes available again, at which point it will be dispatched to you. If you want to check availability before you purchase, please contact us
