New Zealand-made Motorhome roof rack for long-wheelbase Mercedes Sprinter and VW Crafter panel vans. It provides convenient storage space for kayaks, canoes, surfboards, paddleboards, fishing gear, or rowing boats.

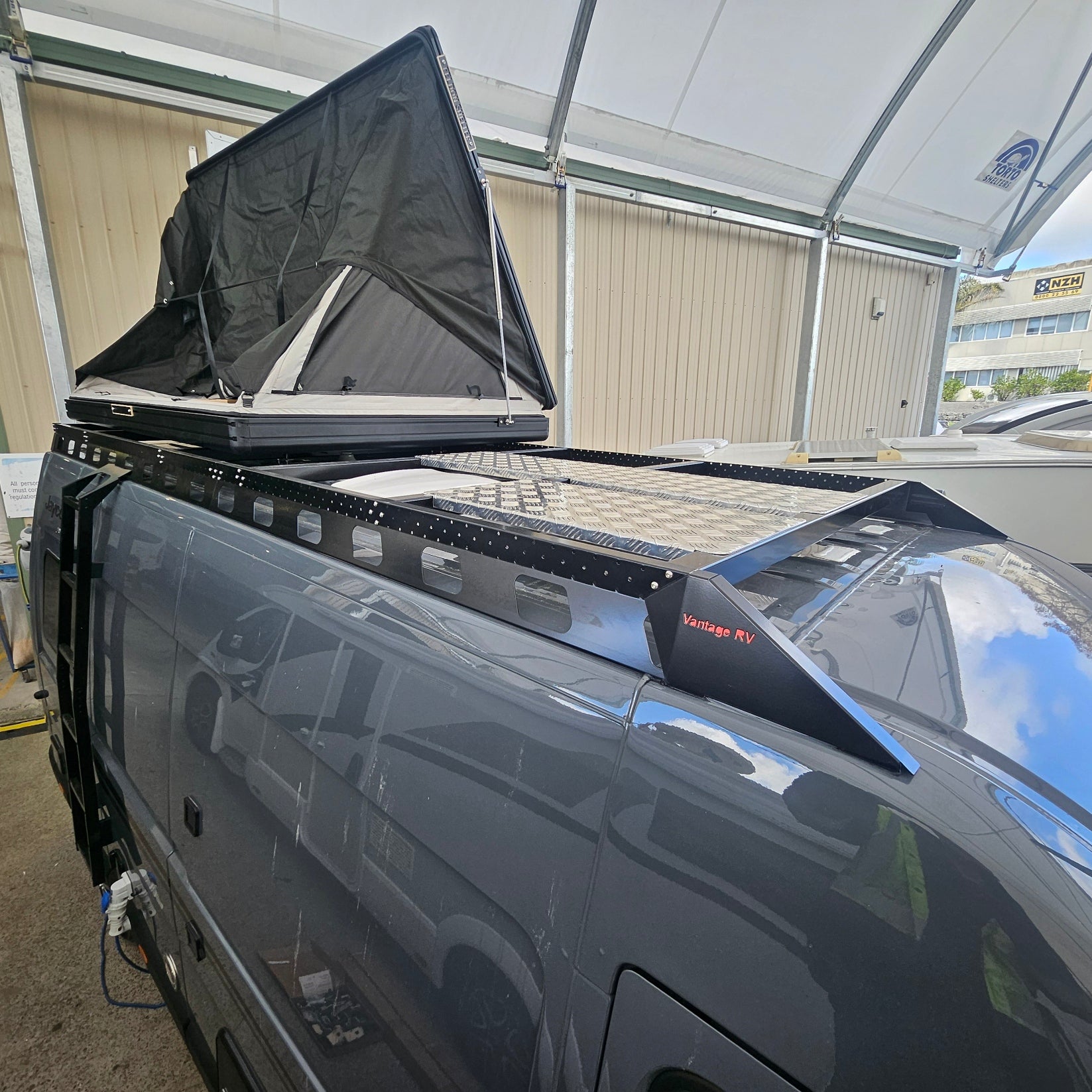

The images are examples of previous installations and may not match what you want.
Features
- A lightweight aluminium construction
- Available in black powder-coated
- Sleek and ergonomic in design
- Adaptable in length
- Very versatile, as the cross-support rails can be fitted anywhere along the side frames
- Supplied with three cross rails, you can fit as many rails as you like; just let us know if you want more.
- Compatible with the VRV rear or side-mounted ladder (please order this separately)
Base Kit Plus Extension
- Kit contains the following:
- 2 x standard right and left-hand side rails 2355mm long
- 2 x short right and left-hand extensions 1400mm long
- 3 x heavy-duty cross rails
- 2 x Sloping end caps for the front
- 2 x spoiler-shaped undercut rear caps
- 3 x awning brackets that bolt onto the awning side rail
- 1 x Fiamma 4mtr awning
- 1 x Stainless steel assembly hardware kit
- Total length of rack 2355mm + 1400mm = 3755mm plus the end caps
- Height from the roof: 120mm
- Max weight capacity: 200kg
To arrange a fitting, please contact us
This version is designed for vehicles without a roof-mount awning; if you already have a van with one, you should buy the VRV-MercRRA.
Mercedes and VW Crafters had the same roof shape until 2017, when VW began manufacturing the bodies at its factory and made minor, not immediately noticeable changes. VW vehicles built after 2017 have a curved roof and require a different solution. If in doubt, contact us.
Fitting method
Our roof racks distribute the load along the entire length of the side rails, which are bonded in situ with high-quality, modern urethane products similar to those used to construct motorhome bodies.
Stainless steel tech screws are sometimes used, but only to anchor the roof rack in place while the urethane sets.
Our roof racks are popular with motorhomes and camper vans built on standard commercial panel vans. We apply the same mounting method to the roofs of these vans with excellent results.
Our heavy-duty racks can carry heavy loads. As a bonus, we can fit a wall-mount awning to the side of the roof rack rail.
Special orders: This example shows the roof rack with a walkway fitted, not included in this product. If you want something different, let us know. Our innovative team will, no doubt, come up with a solution.
Availability
These items are often in high demand in spring, and we never know how many we will sell. You can purchase the items on our website; the goods are mostly dispatched from our warehouse within a day or two. If the items are not in stock, there will be a slight delay while we restock. We design and make all these items in NZ. If you want to check availability before you purchase, please contact us
