Tracer 40 Amp Industrial MPPT type Solar Controller

$370.87 $330.00
/
Tax included. Shipping calculated at checkout.

EP Solar MPPT type controller is a 40-amp solar controller. It is used for off-grid solar systems and works with all our fridges.

MPPT (Maximum Power Point Tracking) is, as far as we know, currently the most efficient type of solar controller and operates best under all environmental conditions.

This is a professional, high-quality 40-amp off-grid solar controller, ideally suited for motor homes, caravans, and small off-grid homes or baches.
This model allows the loads to be switched separately on the positive terminal; this eliminates potential faults and issues associated with continuous earth terminals in AV splitters, TV satellite systems, and FM splitters on vehicles.

This is the recommended controller used by our technicians

Please order MT50 digital displays separately.

Read more about maintaining your batteries

Read more about solar systems

Do you require batteries?

Do you require solar panels?


These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz

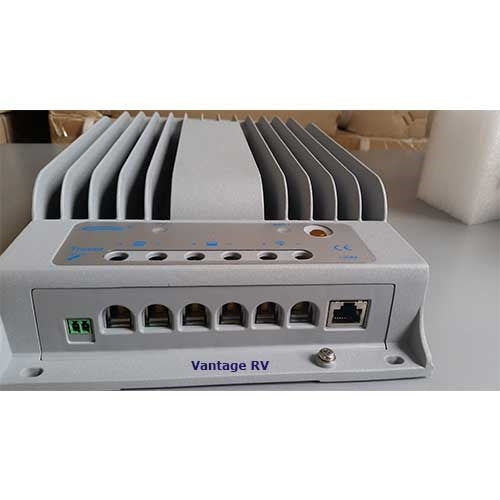

Features

  • LED indicator shows the charging status
  • LED indicator shows battery status or system errors
  • Temperature sensor for regulating ideal charging and discharging values
  • Indicators for setting the timer or battery type
  • LED digital display, displays the load and work mode status
  • Setting button for load work mode status selection
  • Solar Module terminal connection blocks
  • Battery terminal connection blocks
  • Load terminal connection blocks
  • RJ45 Communication Interface for remote digital display

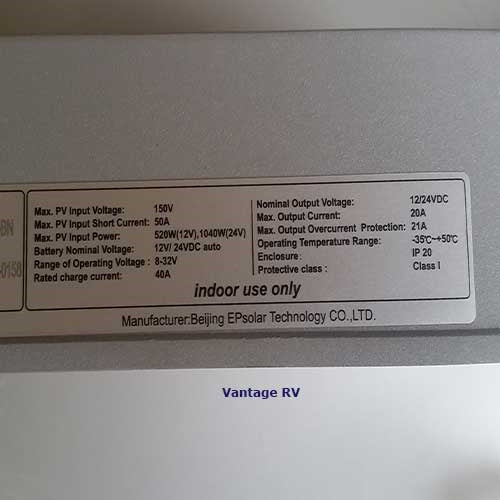

Technical Information

  • System voltage 12/24 VDC Auto
  • Rated charge current 40A
  • Rated discharge current 40A
  • Max PV input voltage 100V
  • Max PV Input power for a 12-volt system: 520 watts / 24-volt system: 1040 watts
  • 1-Year Factory Warranty

Minimum Requirements:

  • Recommended cable diameter from the solar panel should be no less than 4mm2
  • The solar controller should always be fitted in a dust-free, dry environment.
  • Always run loads from the load terminals on the right side of the solar controller, unless the draw exceeds 20 amps. That way, you can always monitor how much energy you generate and use.
