Voltronic Grey Water Tank Monitor

Regular price
$87.00
Sale price
$87.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

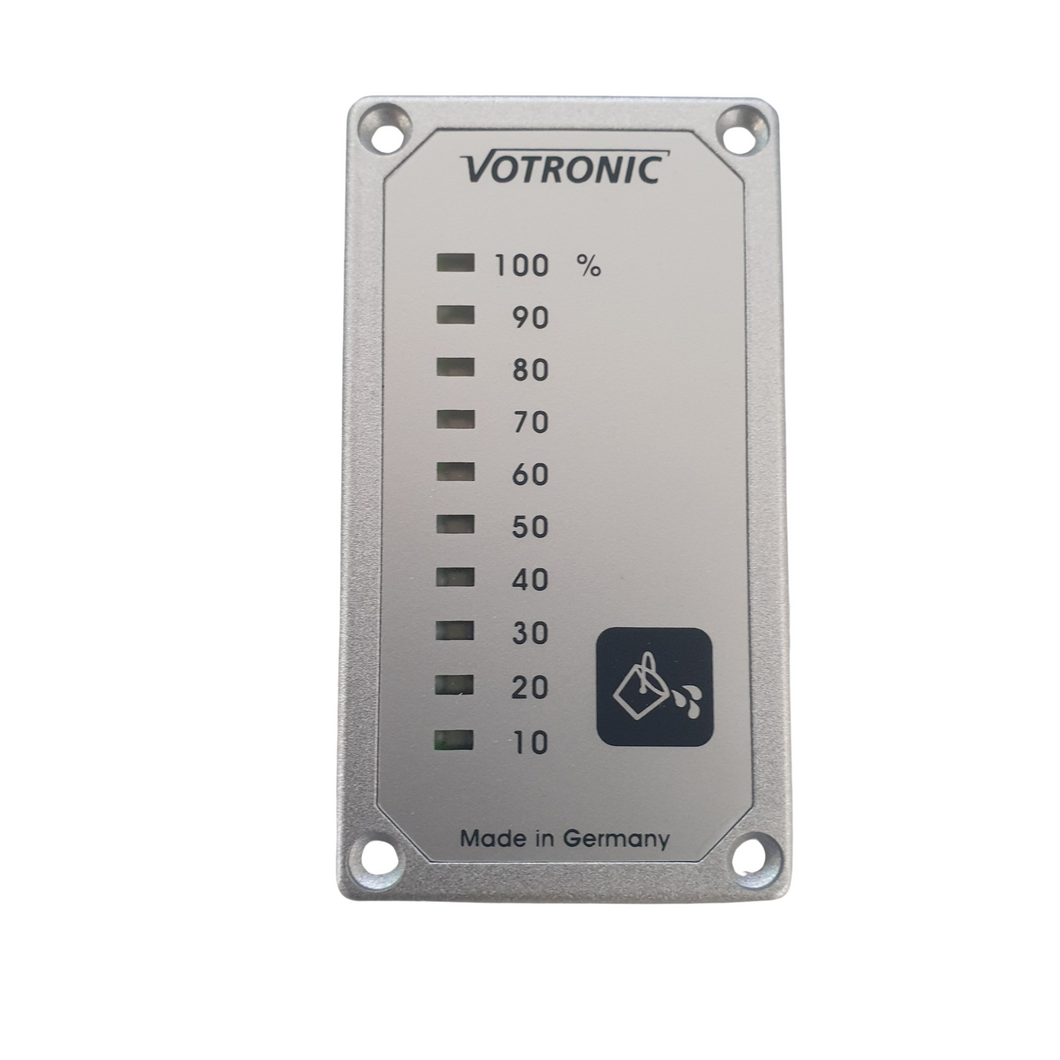

This greywater display clearly monitors the percentage of fluid contained in the tank. It does so by using LEDs, which have 3 different colors.

Must be purchased with a sensor, of which you have 2 options to choose from:

  1. Option 1: The tank electrode 12-24 K. For tank height 12-24 cm and 12/24 volt. This is a probe that should be fitted from the top of the tank by drilling a 36 mm hole and inserting an electrode. The electrode can be cut to the depth of the tank.
  2. Option 2: The tank sensor FL can be fitted from the side, or from the top. It is a flexible probe that dangles down into the tank. It should be set to the correct length, to suit the tank depth required. . Appropriate for tank depths of 30cm to 100cm.

These units can be installed at our workshop in Silverdale. Please contact us for further information regarding installation costs. Tel: 09 4278247 Email: info@vantagerv.nz

Features

  • LED display in 3 colors, which shows the percentage of the tank which is full
  • Elegant design
  • Suitable for any type of tank material
  • Small mount depth of 14mm
  • Will work with 2 different types of probe

Technical Information

  • Overall size of display 85 x 47 x 17 mm (HxWxD)
  • Cut out size of display 62 x 29 x 14 mm (HxWxD)
  • 12 volt and 24 volt DC (voltage range between 10v - 32v)
  • Current consumption of 1mA (when OFF) and 30 mA (when the display is 100% ON)
  • Weight 28g
  • Mounting access will be required
  • The rigid probe can only be mounted from the top, the probes can be cut to length allowing a 20 mm gap from the bottom or wall
  • The flexi probe can be mounted from the side or the top of the tank
  • When fitting the Flexi probe from the top the screwed cable gland can be discarded, the gland is only used if mounted from the side to keep the correct distance from the sidewall.
  • The flexible probe thread is 1/4BSP
  • Probes settings can be adjusted to suit tank and accuracy
