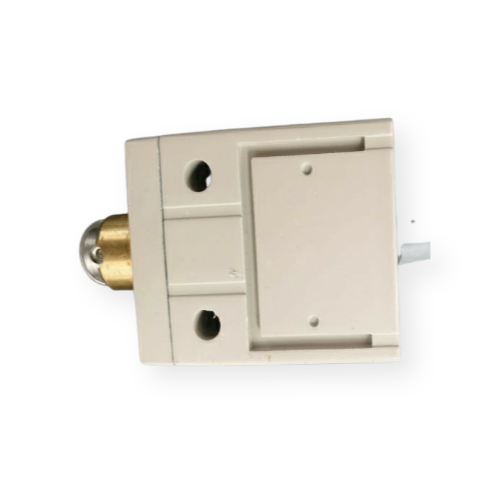

This IP67 waterproof switch has many applications, we mostly use them for alarm systems on the manual satellite dishes in motorhomes.
The switch is fitted so it turns off when the dish is down. So if the driver starts the vehicle and the dish is still open an alarm is activated to warn the driver to fold away the dish.
Other external applications are a limiter switch for electrically operated slide-outs, or electrical steps, and beds, etc.
- IP67 waterproof rating

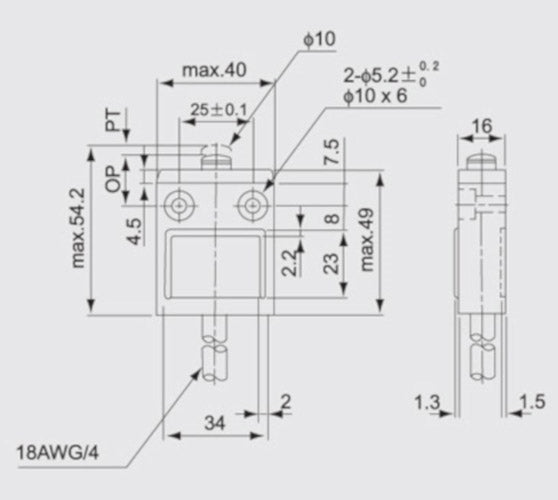

- Size 40 mm Wide x 65 mm Long x 17 mm Thick.
- Multiple mounting points

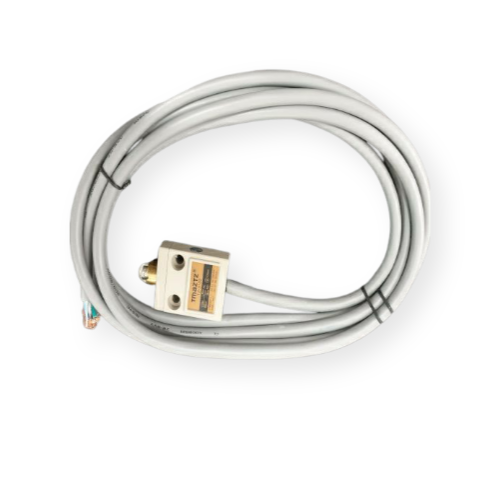

- 3mtr cable length

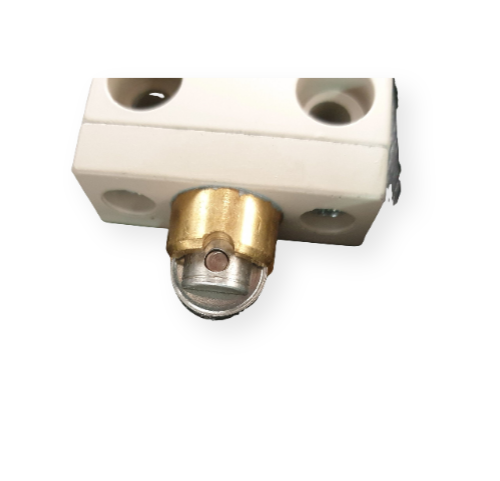

- Rotating bearing on contact point to prevent wear
