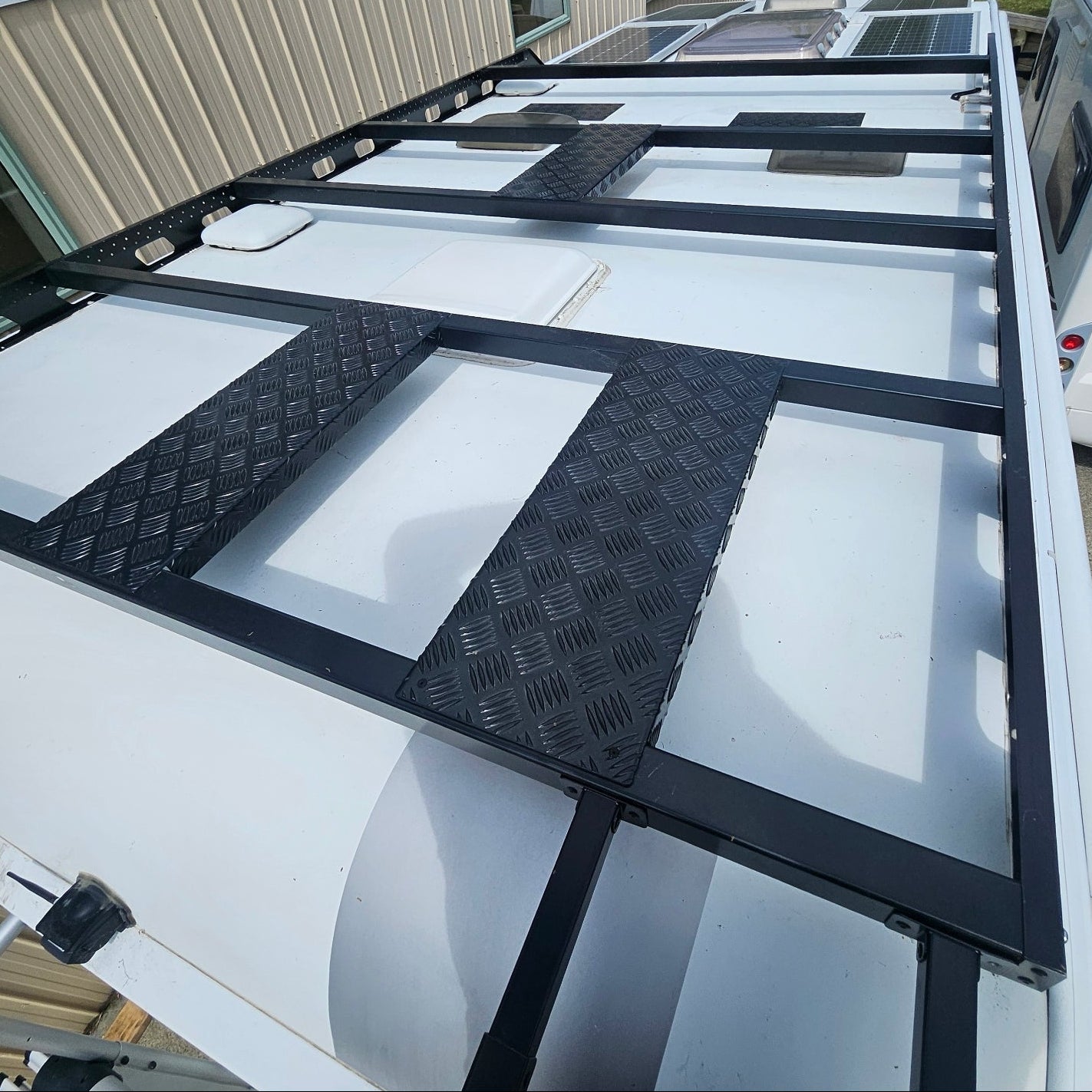

With three heavy-duty rails for the wide span of a box-type motorhome
Ladders and kayak rollers are purchased separately
Technical Information
Kit contains the following:
2 x standard right and left-hand side rails 2355mm long
3 x heavy-duty cross rails
2 x Sloping end caps for the front
2 x spoiler-shaped undercut rear caps
1 x Stainless steel assembly hardware kit
Height from the roof: 120mm
Max weight capacity 200kg
Fitting method
Our roof racks were initially designed for motorhomes and caravans and are made from lightweight products such as foam, aluminium, or fibreglass composite boards. These body designs are not suited to dealing with the point loads exerted by the pads of traditional roof racks.
Our roof racks distribute the load along the entire length of the side rails, preferably on the side edge of the vehicle where the wall and roof meet, where manufacturers use high-density foam to strengthen the edges. The side rails are bonded in situ using high-quality, modern urethane products similar to those used to construct motorhome bodies.
Stainless steel tech screws are sometimes used, but only to anchor the roof rack in place while the urethane sets.
We have various attachments available as extras. Please look at the images and contact us if you have specific items you want to carry and need a solution. Our innovative team will come up with a solution, no doubt.
Other attachments
At Vantage RV, we are constantly innovating, designing and redesigning. If you are looking for an easy load kayak attachment for your van, have a look at the video below
Availability
These items are often in high demand in spring, and we never know how many we will sell. You can purchase the items on our website; the goods are mostly dispatched from our warehouse within a day or two. If the items are not in stock, there will be a slight delay while we restock. We design and make all these items in NZ. If you want to check availability before you purchase, please contact us
Shipping is calculated at checkout, Large items like fridges are shipped to your nearest Mainfreight depot to keep costs down, smaller items are shipped with Posthaste and calculated based on your postal code.
